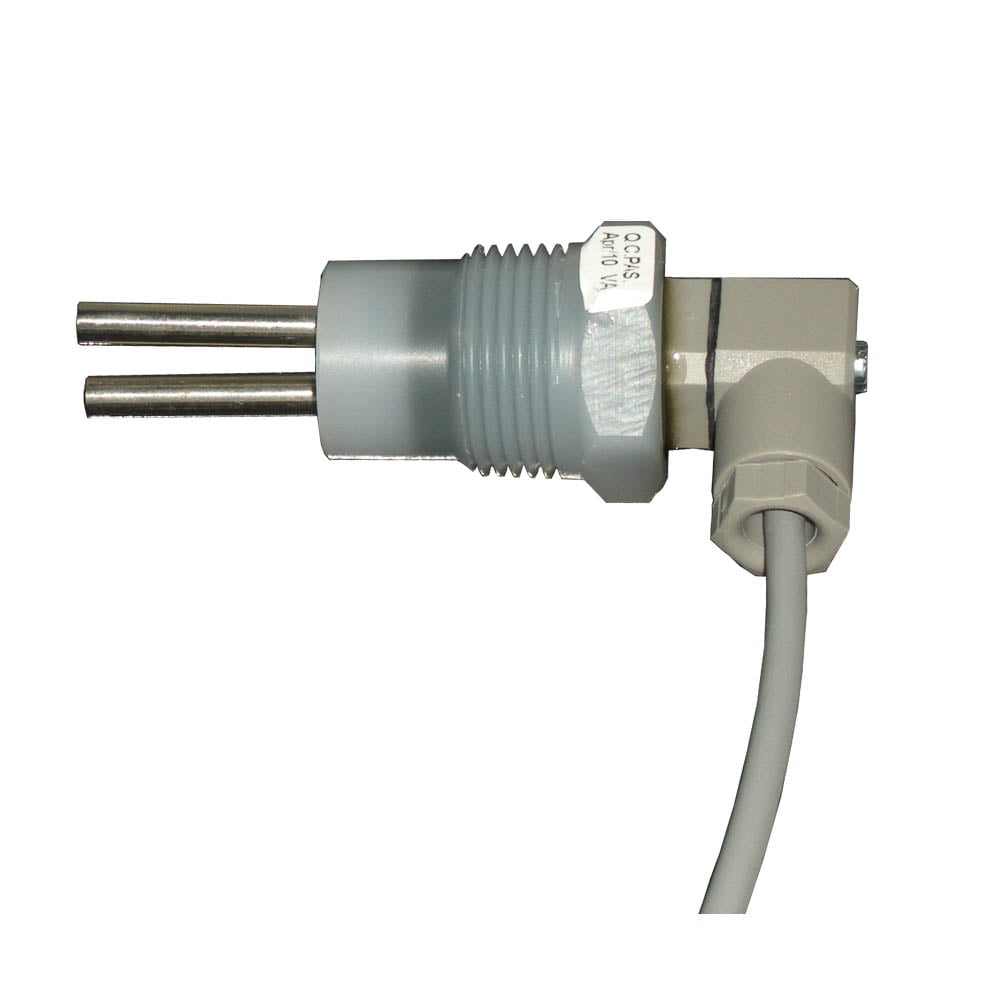

EMEC ECDICPT Conductivity Sensor for EMEC LD Controllers 1
EMEC ECDICPT Conductivity Sensor for EMEC LD Controllers
- Model ECDICPT/1: 0-5mS (K=1)
- Model ECDICPT/01: 0-200µS (K=0.1)
- Replace x in product code with K factor required
- Conductivity Range: 0-5000µS
- PVDF Body with Stainless Steel Electrodes
- 7 Bar at 60°C or, 2 Bar at 100°C
- 3/4 inch thread, with 4m cable
- PT100 Temperature compensation
- Other conductivity probes available upon request – see datasheet for more information
Description
EMEC ECDI Probes - PVDF body SS Electrodes Data Sheet R11-19
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
| Name |
|---|
|
EMEC ECDI Probes - PVDF body SS Electrodes Data Sheet R11-19
|
|
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
|
Additional information
| Variables Measured | Conductivity, TDS |
|---|---|
| Max Pressure / Temp | 8 bar @ 85°C |
| Process Connection | 3/4 inch BSP Male |
| Materials | PVDF Body |
| IP Rating | IP65 |
