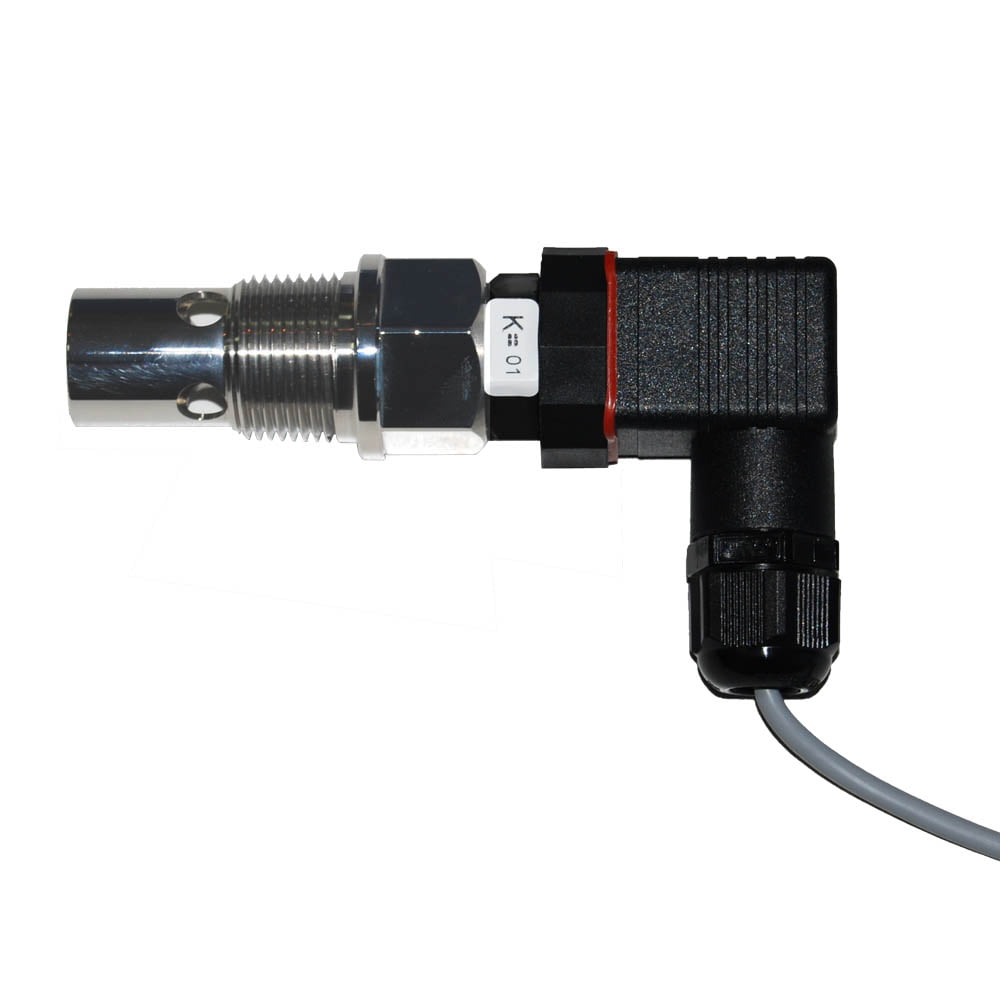

EMEC EICDC Conductivity Probe for EMEC DIN & J DIG Controllers 1
EMEC EICDC Conductivity Probe for EMEC DIN & J DIG Controllers
- Model EICDC/1: 0-20mS (K=1)
- Model EICDC/01: 0-200µS (K=0.1)
- Model EICDC/001: 0-20µS (K=0.01)
- Replace x in product code with K factor required
- Stainless Steel Body & Electrodes
- 15 Bar Max Pressure at 130°C (NOTE: Controller can only compensate up to 100 Deg C)
- 3/4 inch thread, with 4m cable
- 10K ohm NTC Temperature compensation
- Compatible Controllers: EMEC DIN DIG CD, DIN DIG CD/1G, J DIG CD
Description
EICD Conductivity Probe Recommended Installation
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
EMEC EICDC & ECDHTP Probes - SS body & Electrodes Data Sheet R11-19
| Name |
|---|
|
EICD Conductivity Probe Recommended Installation
|
|
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
|
|
EMEC EICDC & ECDHTP Probes - SS body & Electrodes Data Sheet R11-19
|
Additional information
| Variables Measured | Conductivity |
|---|---|
| Max Pressure / Temp | 15 bar @ 130°C |
| Process Connection | 3/4 inch BSP Male |
| Materials | Stainless Steel 316 |
| IP Rating | IP65 |
