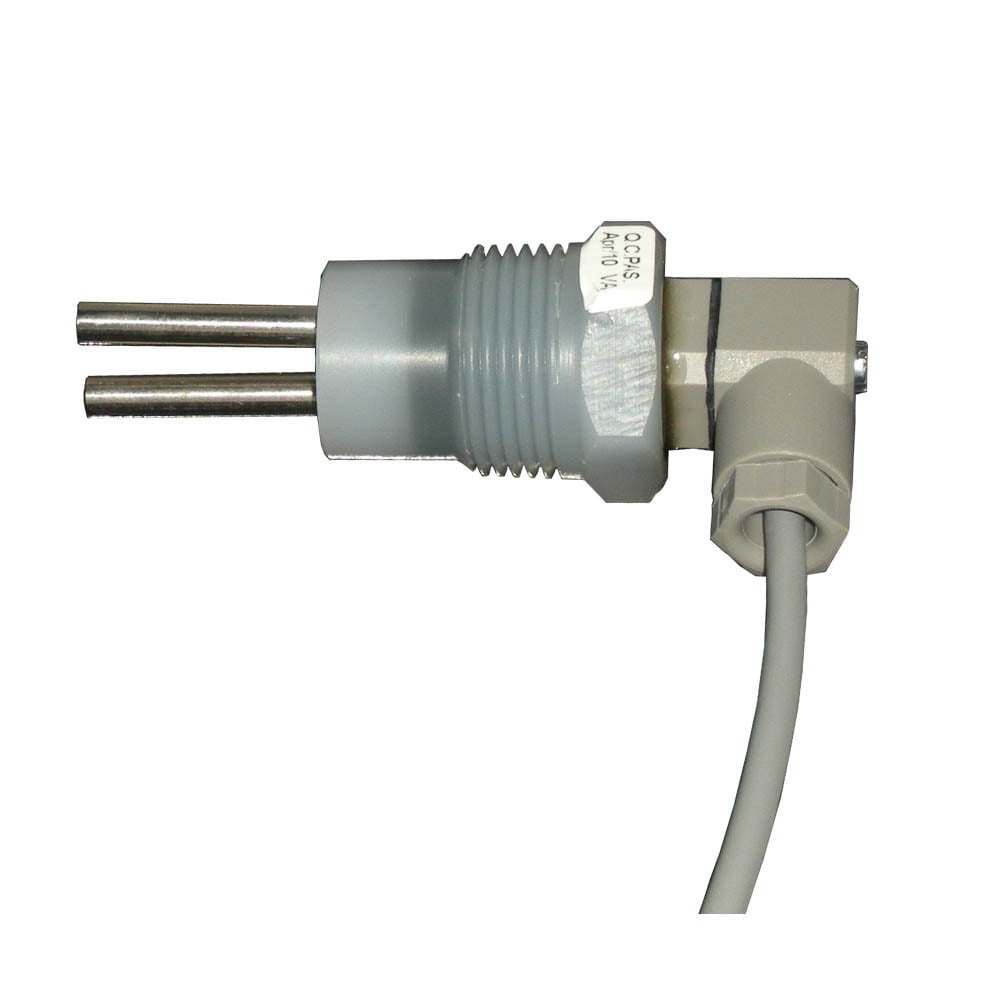

EMEC ECDIC Conductivity Sensor for EMEC DIN & J DIG Controllers

  • Model ECDIC/1: 0-5mS (K=1)
  • Model ECDIC/01: 0-200µS (K=0.1)
  • Replace x in product code with K factor required
  • PVDF Body with Stainless Steel Electrodes
  • 7 Bar / 60 Deg C or 2 bar / 100 Deg C
  • 3/4 inch thread, with 4m cable
  • 10K ohm NTC Temperature compensation
  • Compatible Controllers: EMEC DIN DIG CD, DIN DIG CD/1G, J DIG CD
Compare
SKU: EMEC ECDIC Category: Brand:

Description

EMEC ECDI Probes - PVDF body SS Electrodes Data Sheet R11-19
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
EMEC ECDI Probes - PVDF body SS Electrodes Data Sheet R11-19
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
Name

Additional information

Variables Measured

Conductivity, TDS

Max Pressure / Temp

2 bar @ 100°C, 7 bar @ 60°C

Process Connection

3/4 inch BSP Male

Materials

PVDF Body

IP Rating

IP65
