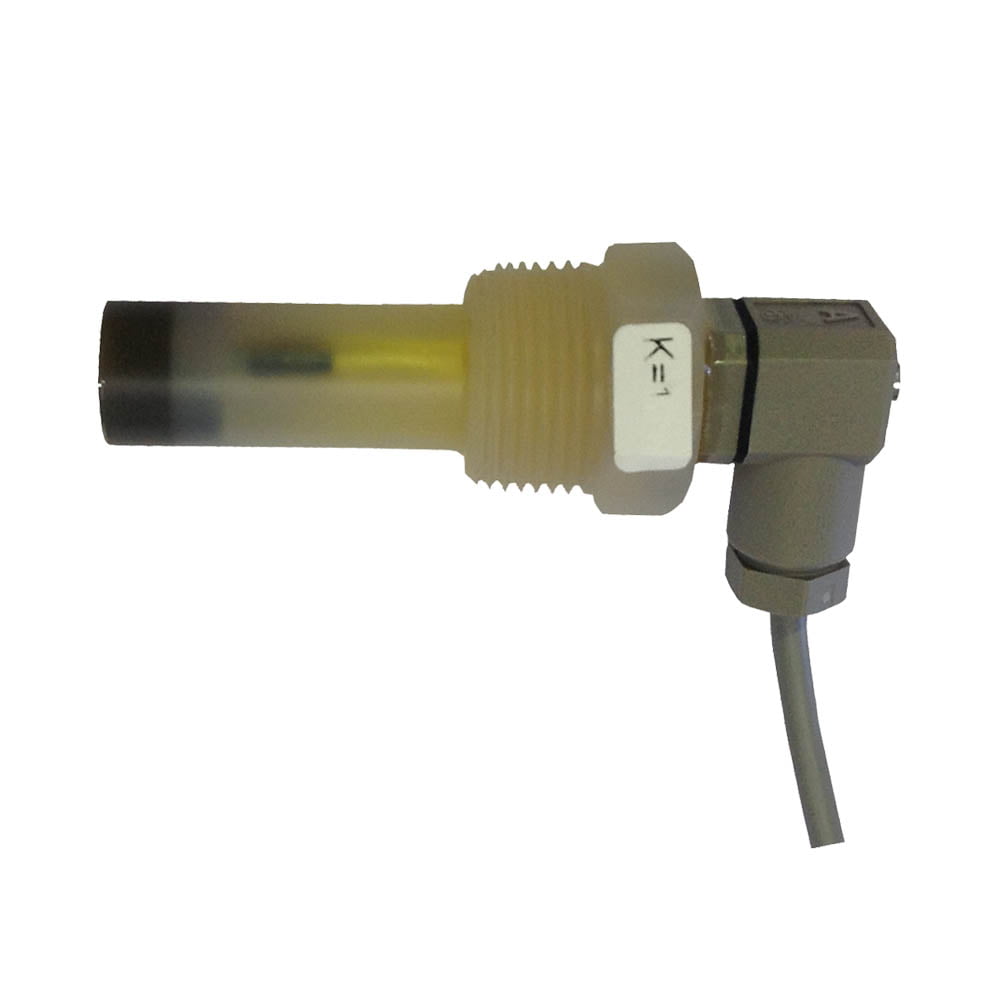

EMEC ECDCC Conductivity Sensor for EMEC DIN & J DIG Controllers 1
EMEC ECDCC Conductivity Sensor for EMEC DIN & J DIG Controllers
- Model ECDCC/10: 0-200mS (K=10)
- Model ECDCC/1: 0-20mS (K=1)
- Replace x in product code with K factor required
- PVDF Body with Graphite Electrodes
- 7 Bar / 60 Deg C or 2 bar / 100 Deg C
- 3/4 inch thread, with 4m cable
- 10K ohm NTC Temperature compensation
- Compatible Controllers: EMEC DIN DIG CD, DIN DIG CD/1G, J DIG CD
Description
EMEC ECDC Probes - PVDF body Graphite Electrodes Data Sheet R11-19
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
| Name |
|---|
|
EMEC ECDC Probes - PVDF body Graphite Electrodes Data Sheet R11-19
|
|
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
|
Additional information
| Variables Measured | Conductivity |
|---|---|
| Max Pressure / Temp | 2 bar @ 100°C, 7 bar @ 60°C |
| Process Connection | 3/4 inch BSP Male |
| Materials | PVDF Body |
| IP Rating | IP65 |
