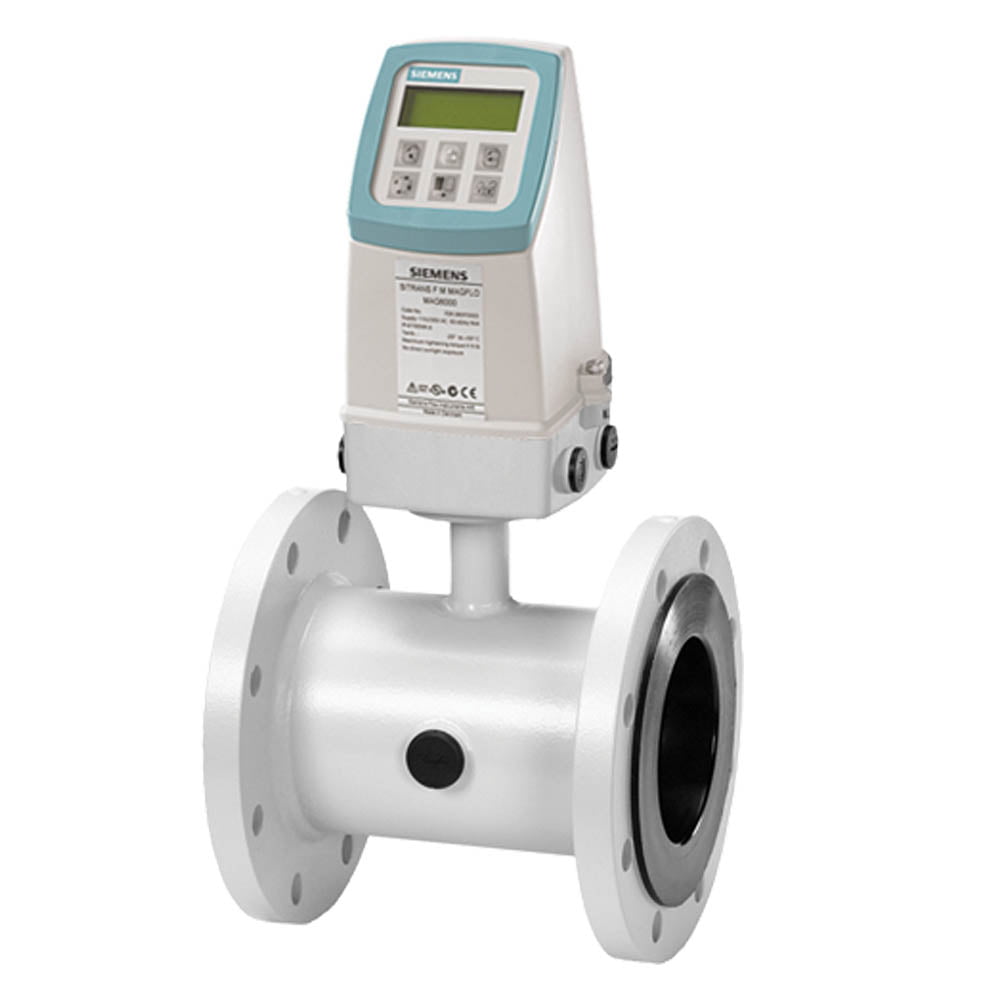

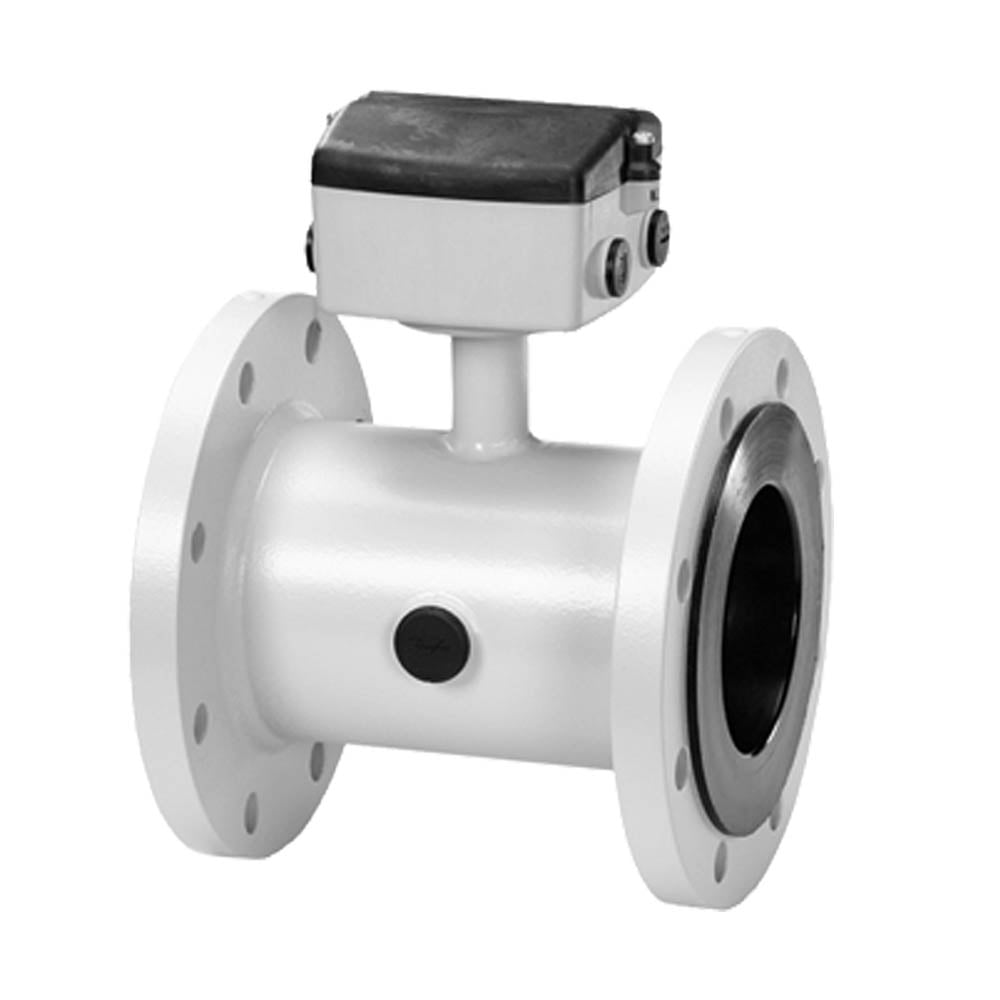

Mag Flow Meter – SIEMENS MAG5100 W (DN25-DN300)
- SITRANS MAGFLO MAG5100 W Flow sensor
- DN 25 (1 inch), DN40 (1-1/2 inch), DN50 (2 inch), DN65 (2-1/2 inch), DN80 (3 inch), DN100 (4 inch), DN150 (6 inch), DN200 (8 inch), DN250 (10 inch) & DN300 (12 inch) sizes available (DN350 to DN1200 on request)
- AS4087 PN16 Flanges & carbon steel housing
- EPDM lining with Hastelloy electrodes.
- Preferred Mag Flo Meter for Trade Waste Outflow Monitoring by many Water Authorities
- IMPORTANT: 2 x Optional SIEMENS BW186 Earthing Flanges required per meter
Description
SIEMENS INSTALLATION GUIDELINES FOR MAGFLO FLOWMETERS FI01-2015
SIEMENS MAG5100 Data Sheet F1-01-2011
SIEMENS MAG5100 Instruction Manual
Siemens MAGFLO Field Checklist
| Name |
|---|
|
SIEMENS INSTALLATION GUIDELINES FOR MAGFLO FLOWMETERS FI01-2015
|
|
SIEMENS MAG5100 Data Sheet F1-01-2011
|
|
SIEMENS MAG5100 Instruction Manual
|
|
Siemens MAGFLO Field Checklist
|
Additional information
| Variables Measured | Flow Rate, Flow Volume |
|---|---|
| Max Flow / Pressure (Head) | 100 m3/hr @ 16 bar, 150 m3/hr @ 16 bar, 20 m3/hr @ 10 bar, 250 m3/hr @ 16 bar, 40 m3/hr @ 16 bar, 400 m3/hr @ 16 bar, 63 m3/hr @ 16 bar |
| Max Pressure / Temp | 16 bar @ 70°C |
| Port Size | DN25 to DN300 Flange EN1092-1 |
| Materials | Carbon Steel with Ebonite Lining & Hastelloy electrodes |
| IP Rating | IP67 |
