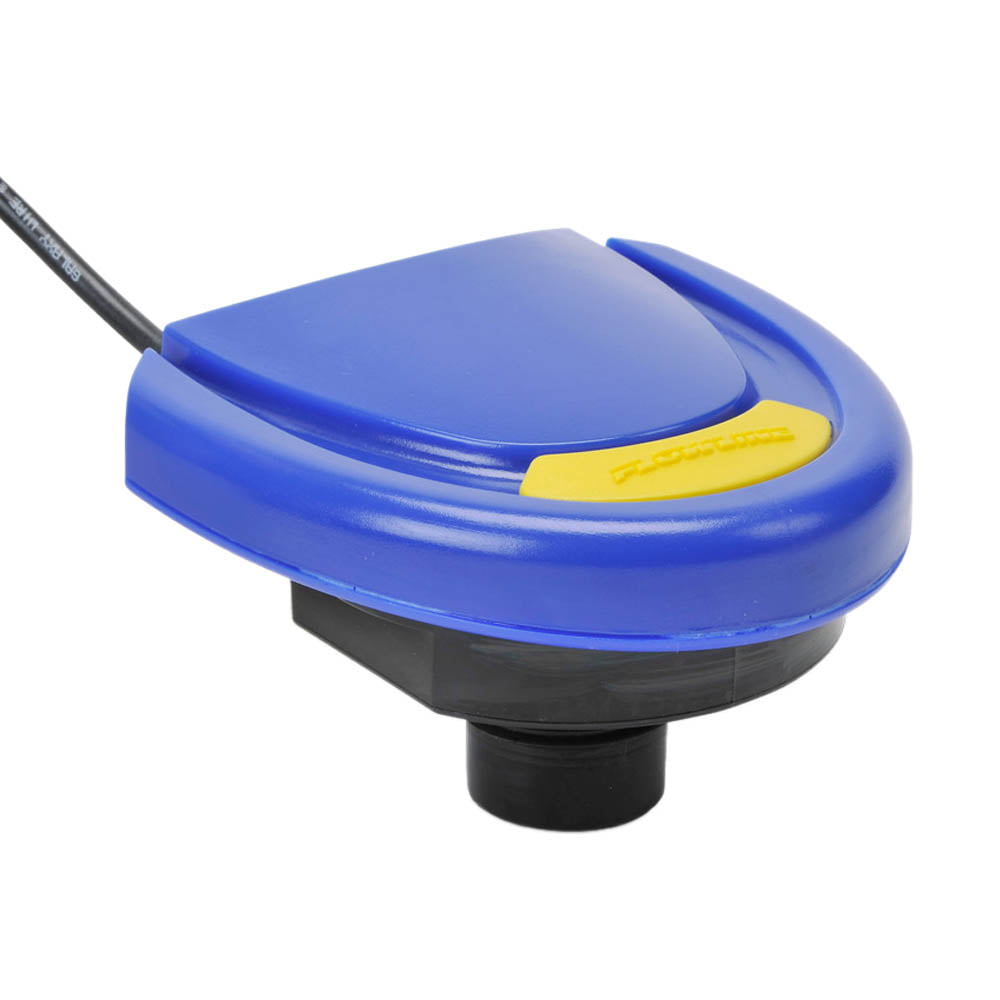

ECHOSONIC LU27-10 Ultrasonic Level Detector 2
ECHOSONIC LU27-10 Ultrasonic Level Detector 2.5m max, mA O/P
- PVDF Chemical Resistant Transmitter with Polycarbonate body, ideal for harsh chemical environments
- 2.5m Range with 5mm Accuracy
- 50mm Beam Width
- 4-20mA Analog output (24Vdc Loop Powered)
- Software programmable
- 140 Degrees C at 2 Bar Max operation
- 1 inch BSP Process mount with Viton Gasket
- Software can be downloaded from the Downloads menu under Software
- Requires optional USB Interface tool P/N ECHOPOD LI99-1001 and free WebCal software to configure.
- Webcal software can be downloaded from the Downloads menu under Software
Description
ECHOSONIC LU27-10 Instruction Manual
EchoSonic LU27 Data Sheet
| Name |
|---|
|
ECHOSONIC LU27-10 Instruction Manual
|
|
EchoSonic LU27 Data Sheet
|
Additional information
| Variables Measured | Level |
|---|---|
| Outputs | 4-20mA |
| Process Connection | 1 inch BSP Male |
| Materials | PVDF Body |
| IP Rating | IP67 |
