RV ILS-X-B20E Black Bowl Strainers 20 mesh (915 micron) 1

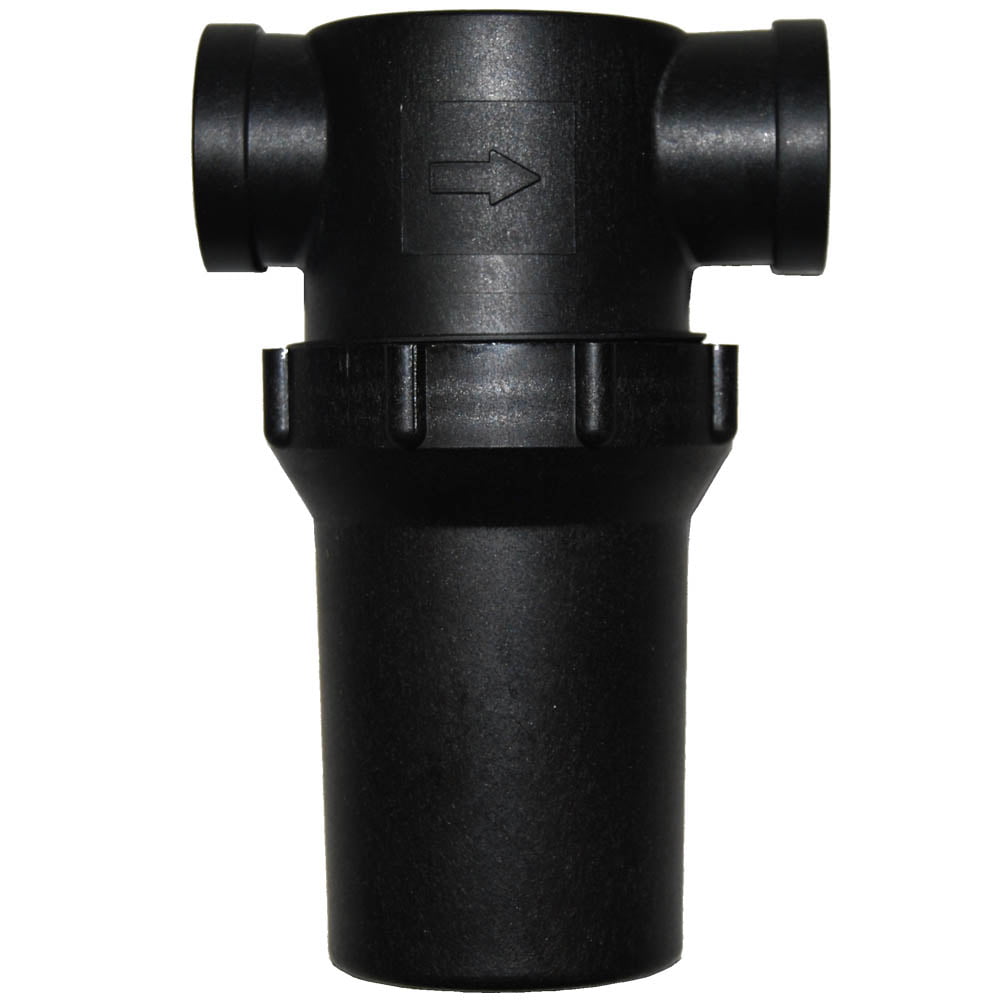

RV ILS-X-B20E Black Bowl Strainers 20 mesh (915 micron)
- Replace X with either ¾, 1, 1¼ or 1½ for inch size required
- Black bowl limits grown of algae for outdoor applications
- Strainer screens available in 40 mesh (480 micron) & 80 mesh (178 micron)
- 20% Glass filled PP Body
- 6.9 Bar at 52°C or 10 Bar at 21°C Max operation
- EPDM O-ring (Buna O-ring available upon request)
- Protection of solenoid valve in manifold against dirt and grit from Cooling Tower Water
- Protection of Onga Recirculation pump against abrasion caused by solid particles
- Effective filtration of manifold water
Description
RV ILS Data Sheet v1
RV ILS Spare Parts v1.0
| Name |
|---|
|
RV ILS Data Sheet v1
|
|
RV ILS Spare Parts v1.0
|
Additional information
| Max Pressure / Temp | 10 bar @ 20°C, 6.9 bar @ 52°C |
|---|---|
| Port Size | 1 inch FNPT, 1-1/2 inch FNPT, 1-1/4 inch FNPT, 3/4" FNPT |
| Materials | 20% Glass Filled PP Body & Bowl, EPDM Gasket |
| IP Rating | IP65 |
