EMEC CENTP
SALE

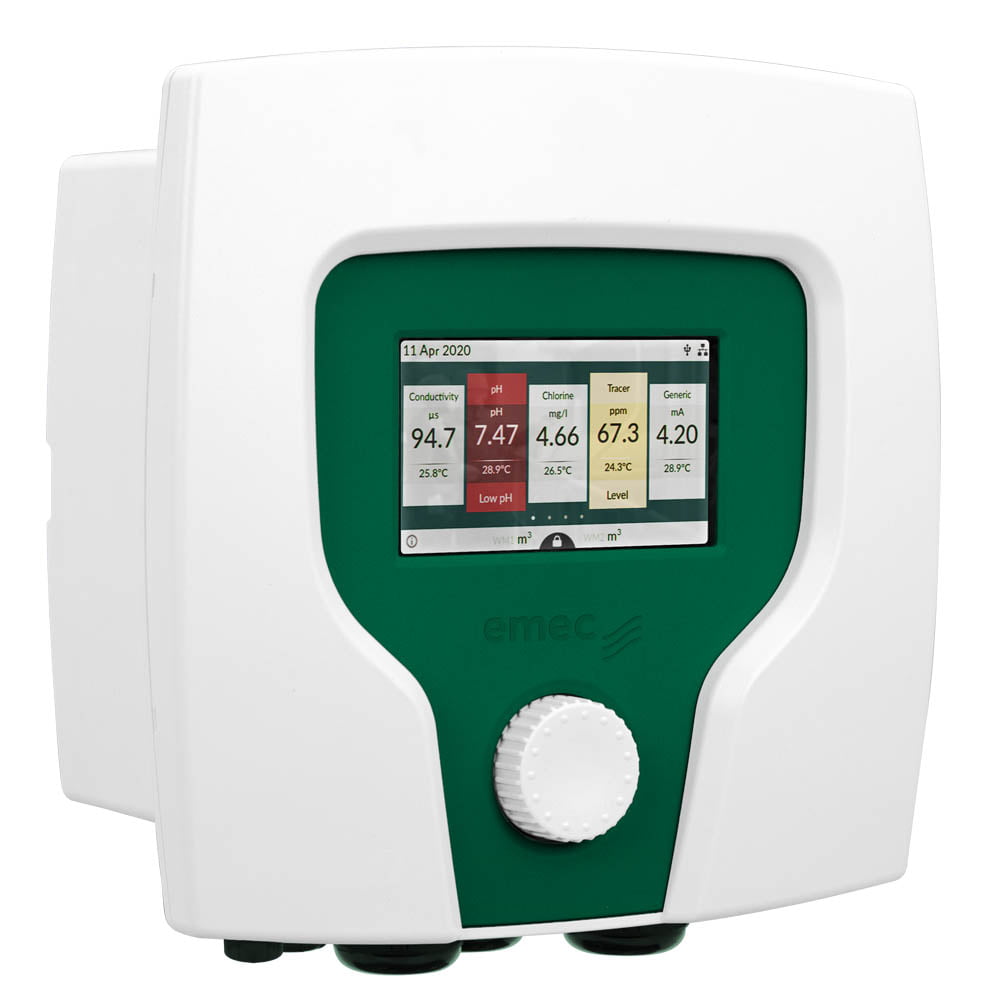

CENTURIO TOWER Controller for EC/pH/ORP/CL2/BR2
- 6 Parameter Multi Function Controller
- Plug and Play – Any combination of variables possible (EC, pH, ORP, CL2, CLt, Br2, mA).
- Example of configuration: 1 x Conductivity, 1 x pH channels, 1 x ORP, 1 x Free Bromine
- Amperometric sensor & Inductive Conductivity Sensor cards available
- Can scale and control external mA input, e.g. mA converted to Corrosion Rate
- Relay (ON/OFF or PWM) or Pulse Proportional Control
- Programmable Bleed, Inhbitor & Biocide functions
- 2 x Water meter inputs to log flow rate and consumption (Make-up & Bleed)
- Touchscreen
- ERMES Ready – Remote access via 4G, WiFi, Ethernet with live readings
- MODBUS RTU or TCP, 4-20mA
SKU: EMEC CENT TOWER
Category: EMEC Centurio Tower Touchscreen 6 Channel
Tag: emec controllers
Brand: emec
Description
EMEC CENTURIO Brochure 2019
EMEC CENTURIO Tower Data Sheet R3-06-20
EMEC CENTURIO Tower Instruction Manual R33-01-22 LR
EMEC Cooling Tower Controllers Brochure 2020
| Name |
|---|
|
EMEC CENTURIO Brochure 2019
|
|
EMEC CENTURIO Tower Data Sheet R3-06-20
|
|
EMEC CENTURIO Tower Instruction Manual R33-01-22 LR
|
|
EMEC Cooling Tower Controllers Brochure 2020
|
Additional information
| Variables Measured | CLt, Cl2, CLO2, Conductivity, DO, Flow Status, Flow Volume, H2O2, ORP, pH, TDS, Temperature |
|---|---|
| Inputs | Amperometric Sensor, Conductivity Probe with Electrodes & PT100, DO Sensor, Flow Switch Contact, Inductive Conductivity Probe & PT100, ORP Probe, pH Probe, PT100, Standby Dry Contact, Turbidity Sensor, Water Meter Bleed Pulses, Water Meter Make-up Pulses |
| Outputs | 4-20mA, Alarm Relay, Optional Modbus, Pulse, Switched Relays For Optional Pumps/Valves |
| Remote Comms | 4G, LAN (ethernet), Modbus RTU/TCP |
| IP Rating | IP65 |
