CR-ASTM-2C-M20-10-SS

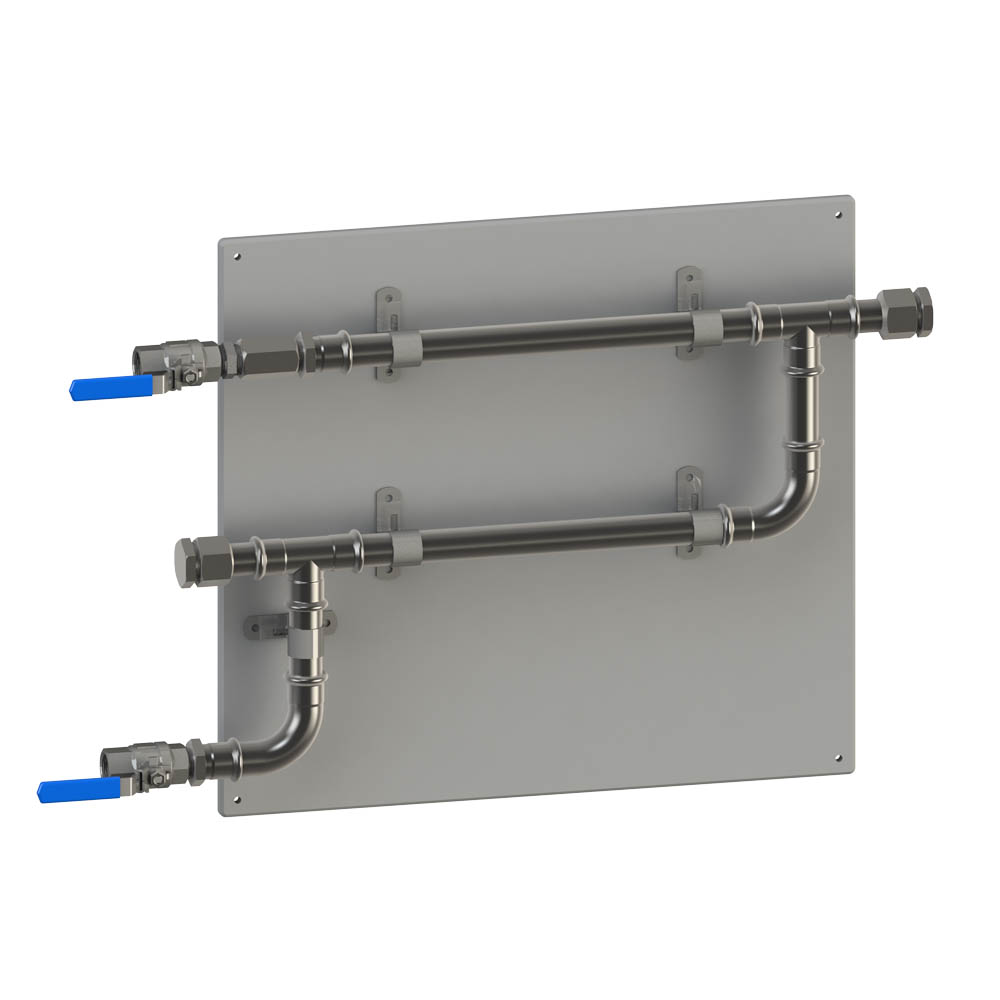

CR-ASTM-2C-M20-10-SS 20mm (3/4”) SS316 ASTM Coupon Rack with Isolation valves
- Compliant to ASTM D2688 specification for Dimensions and Flow – Standard Test Method for Corrosivity of Water in the Absence of Heat Transfer (Weight Loss Method)
- Flow maintained at a fixed rate during a wide range of differential pressure across the inlet and outlet of the rack
- Includes isolation valves for removing coupons and/or regulating flow
- Stainless Steel 316 Construction – 10 Bar Max Pressure at 100°C
- Complete with coupon holders (metal coupons not supplied)
- Direction of water flow always from bolt & nut holding coupon to end of coupon itself – ensures same flow characteristics over all coupons
- Download a copy of ASTM D2688 from www.astm.org/Standards/D2688.htm
Description
ASTM SS316 Corrosion Coupon Racks v1.0
CR-ASTM-2C-M20-10-SS Dimensional Drawings Rev 01
| Name |
|---|
|
ASTM SS316 Corrosion Coupon Racks v1.0
|
|
CR-ASTM-2C-M20-10-SS Dimensional Drawings Rev 01
|
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Max Pressure / Temp | 10 bar @ 100°C |
| Port Size | 3/4" BSP Female |
| Materials | Stainless Steel 316 |
| IP Rating | IP65 |
