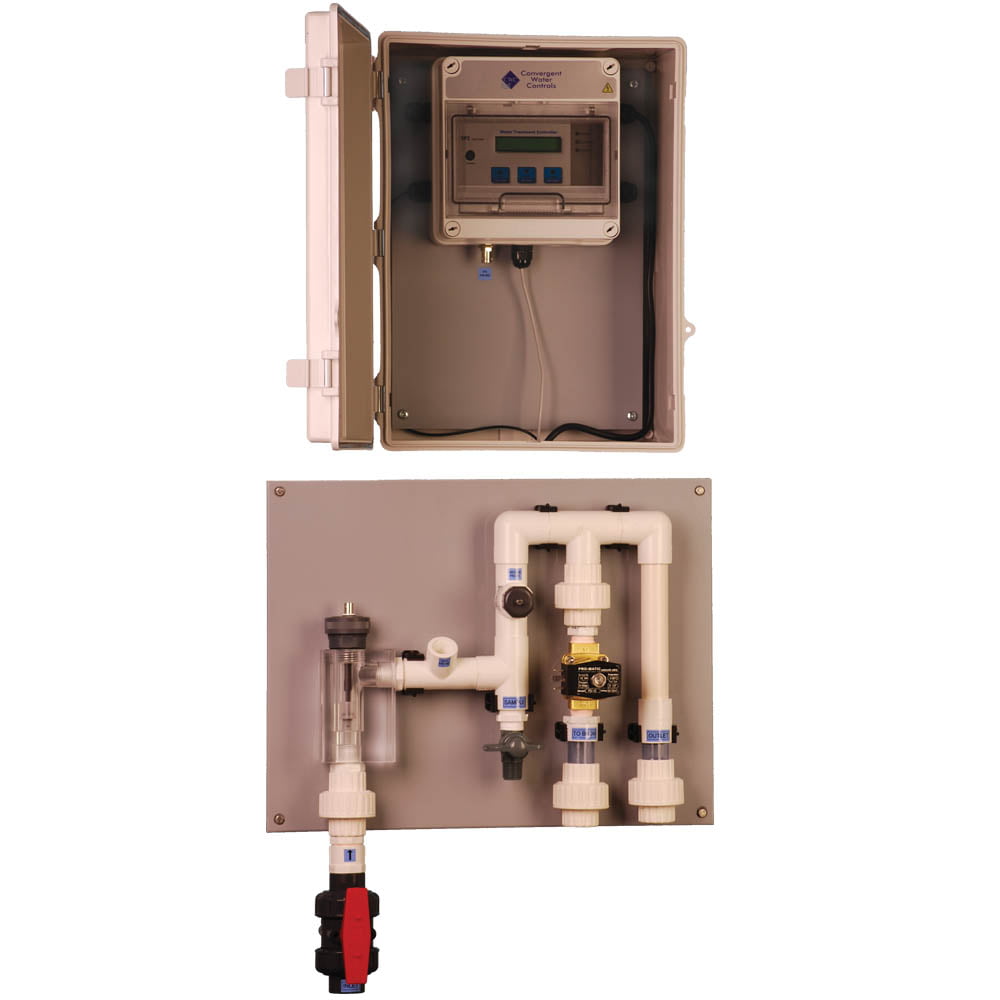

DCON-RX2-B-CABG ORP Control System w/ Solenoid Valve for Brom 1
DCON-RX2-B-CABG ORP Control System w/ Solenoid Valve for Brom
- Digital controller in hinged lockable, PC ABS cabinet, mounted with manifold on separate PVC back panel
- On-board data logging
- ORP controlled via solenoid valve to optional brominator
- Fail-safe alarm relay with remote power failure detection
- Options & variations available – download data sheet
Description
DCON-RX2 & ORP-XP2 Data Sheet v3.0
DCON-RX2 & ORP-XP2 Instruction Manual M1-ver-1.3
DCON-RX2-B Spare Parts v1.1
DCON-RX2-B or similar Installation Instructions v1.0
DCON-RX2-B-CABG Assembly Diagram
| Name |
|---|
|
DCON-RX2 & ORP-XP2 Data Sheet v3.0
|
|
DCON-RX2 & ORP-XP2 Instruction Manual M1-ver-1.3
|
|
DCON-RX2-B Spare Parts v1.1
|
|
DCON-RX2-B or similar Installation Instructions v1.0
|
|
DCON-RX2-B-CABG Assembly Diagram
|
Additional information
| Configuration | Controller & Pumps Mounted In Cabinet, Wall Mount |
|---|---|
| Variables Measured | ORP |
| Inputs | Flow Switch Contact, ORP Probe |
| Outputs | Alarm Relay, ORP Brominator Valve Via Relay |
| Data Logging | Included |
| Max Pressure / Temp | 2.7 bar @ 50°C |
| Port Size | 3/4" BSP Female |
| Materials | PVC Manifold, Solenoid valves brass |
| IP Rating | IP65 |
