DP-CAPHP-RXP-CAB
DP-CAPHP-RXP-CAB (Bleed, Inhib, BioA, pH, ORP via Chlorine Pump)
- Internet Based Connectivity as an option
- Continuous readout of Conductivity, Temp, pH & ORP with each setpoint on backlit LCD
- Monitoring and control of Conductivity/TDS, pH and ORP simultaneously
- On-board data logging
- Display and logging of cycles of concentration of the cooling tower
- Manual slug dose feature on all pumps
- Inhibitor modes: On bleed, After bleed, 24/7 cycle, Proportional to make-up
- Ability to measure and log cooling tower make-up and bleed water flow rate & consumption
- Inhibitor, Non-oxidising biocide, pH & ORP pumps
- Disinfection feature to allow ORP control to a temporary high setpoint
- 28 Day Timers for disabling pH & ORP output if continuous control not desired.
- 28 Day Biocide Dosing programs (max 70 per week)
- Password protection

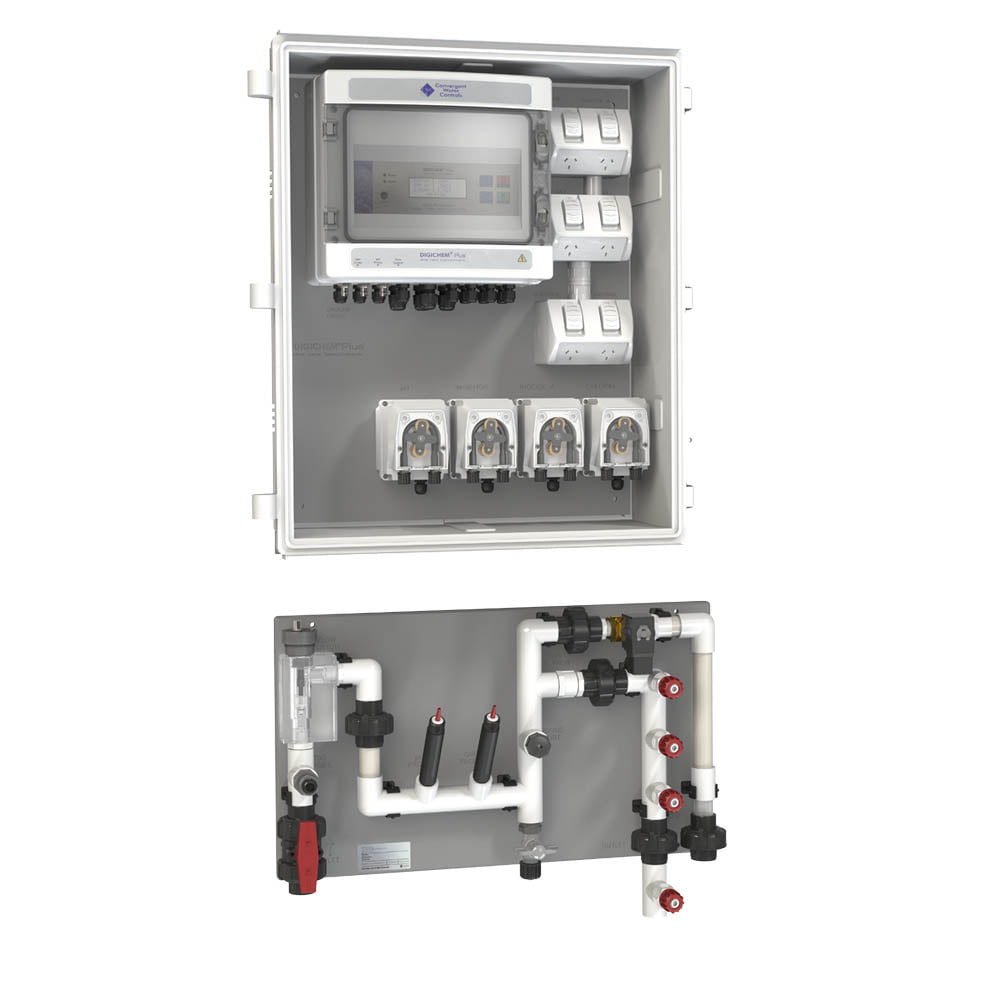

- Digital controller & pumps in hinged lockable, PC ABS cabinet, mounted with manifold on separate PVC back panel
- Pumps plug into GPO’s
- Extra GPO’s for additional ORP and Dispersant pumps
Description
DIGICHEM Plus+ Firmware upgrade Compatibility Rev 1.0
DIGICHEM Plus+ Tips for Remote Setup & TroubleShooting v1.0
DP-CA DIGICHEM Plus Data Sheet v1.2
DP-CA DIGICHEM Plus Instruction Manual v5.0
DP-CAPHP-RXP or similar Installation Instructions v1.1
DP-CAPHP-RXP-CAB Assembly Diagram
DP-CAPHP-RXP-CAB Spare Parts Exploded Rev 01
| Name |
|---|
|
|
|
DIGICHEM Plus+ Firmware upgrade Compatibility Rev 1.0
|
|
DIGICHEM Plus+ Tips for Remote Setup & TroubleShooting v1.0
|
|
DP-CA DIGICHEM Plus Data Sheet v1.2
|
|
DP-CA DIGICHEM Plus Instruction Manual v5.0
|
|
DP-CAPHP-RXP or similar Installation Instructions v1.1
|
|
DP-CAPHP-RXP-CAB Assembly Diagram
|
|
DP-CAPHP-RXP-CAB Spare Parts Exploded Rev 01
|
Additional information
| Configuration | Controller & Pumps Mounted In Cabinet, Wall Mount |
|---|---|
| Variables Measured | Conductivity, Flow Status, Flow Volume, ORP, pH, TDS, Temperature |
| Inputs | Conductivity Probe with Electrodes & 47K NTC, Flow Switch Contact, ORP Probe, pH Probe, Water Meter Bleed Pulses, Water Meter Make-up Pulses |
| Outputs | Alarm Relay, Bio A Pump Via Relay, Bleed Valve Via Relay, Inhibitor Pump Via Relay, Optional Dispersant Pump Via Relay, ORP Chlorine Pump Via Relay, pH Pump Via Relay |
| Data Logging | Included |
| Remote Comms | Via Optional Modem |
| Max Pressure / Temp | 2.7 bar @ 50°C |
| Port Size | 20mm Solvent Weld |
| Materials | PVC Manifold, Solenoid valves brass |
| IP Rating | IP65 |
