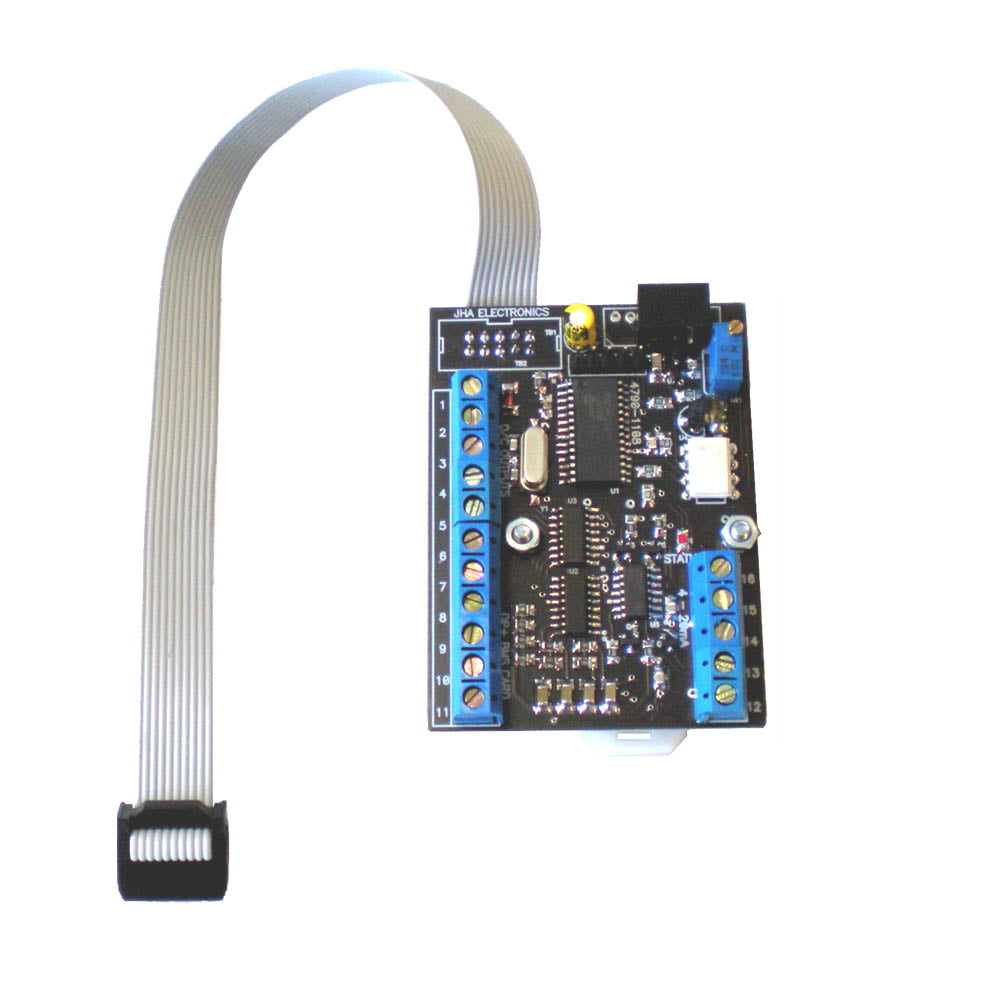

DP-OPT-CARD-OP 4-20mA & Logic Output Card for DIGICHEM Plus+
- Provides 4 x Isolated 4-20mA Outputs for TDS/µS, ORP, pH & Temperature
- NPN Open Collector Outputs for Power Failure, Flow, Alarm, and Individual Pump Status
- Individual 4-20mA Signals can be converted to 1-5Vdc via a 250 Ohm resistor
- Total Max 4-20mA Output Impedance: 500 Ohm
- On-board LED indicates card is operating
- C-tick EMC Approval rating
Description
DP-OPT-CARD-OP Instruction Manual v1.2
| Name |
|---|
|
DP-OPT-CARD-OP Instruction Manual v1.2
|
Additional information
| Outputs | 4-20mA, NPN For Logic Status |
|---|---|
| IP Rating | N/A |
