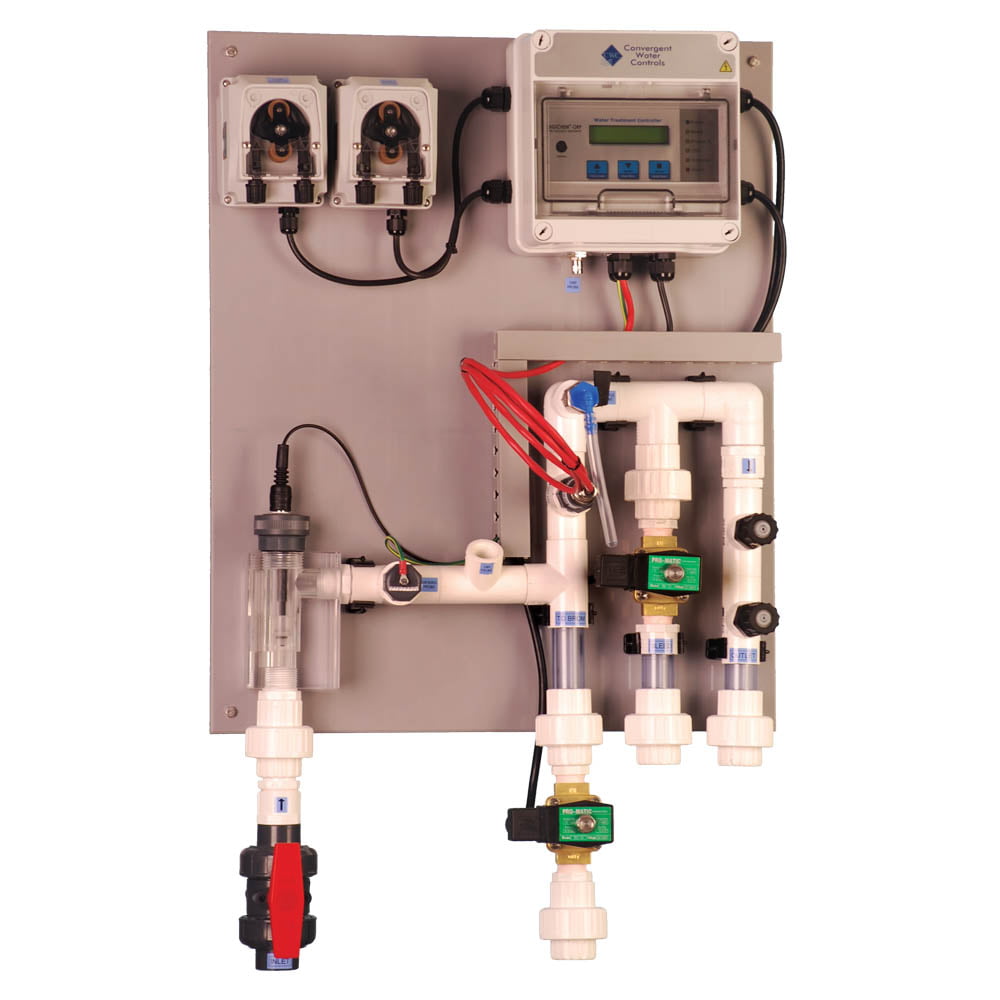

DIGI-AB2RX2A-B (Bleed, Inhib, BioA, ORP via Brom Valve) 1
DIGI-AB2RX2A-B (Bleed, Inhib, BioA, ORP via Brom Valve)
- Supersedes DIGICHEM-AB2RX2A-B
- On-board data logging
- NEW Black EPDM based squeeze tube with better chemical compatibility & longer tube life
- Digital controllers, pumps & manifold mounted on PVC back panels
- Bleed Control – via solenoid valve
- Inhibitor Dosing – reduces corrosion
- Dual Biocide Dosing for system disinfection
- Primary (oxidising) biocide dosing – ORP controlled via optional brominator
- Secondary (non-oxidising) biocide dosing via 10 x 28-day timer programs with Pre-bleed & Bleed Lock-out
- Self priming peristaltic pumps (1.3l/hr,3bar)
- Condenser pump override facility during secondary biocide dosing with delay-off timer
- Fail-safe alarm relays with remote power failure detection
- Optional brominator required for system to operate
- Options & variations available – download data sheet
Description
DIGI-AB2RX2A - DIGICHEM-ORP-XP2 Instruction Manual v2.0
DIGI-AB2RX2A DIGICHEM-ORP-XP2 Data Sheet v2.1
DIGI-AB2RX2A-B Assembly Diagram
DIGI-AB2RX2A-B-CABG Spare Parts Exploded Rev 01
DP-CAPH-RXB or similar Installation Instructions v1.1
| Name |
|---|
|
|
|
DIGI-AB2RX2A - DIGICHEM-ORP-XP2 Instruction Manual v2.0
|
|
DIGI-AB2RX2A DIGICHEM-ORP-XP2 Data Sheet v2.1
|
|
DIGI-AB2RX2A-B Assembly Diagram
|
|
DIGI-AB2RX2A-B-CABG Spare Parts Exploded Rev 01
|
|
DP-CAPH-RXB or similar Installation Instructions v1.1
|
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Variables Measured | Conductivity, Flow Status, ORP, TDS, Temperature |
| Inputs | Conductivity Probe with Electrodes & 47K NTC, Flow Switch Contact, ORP Probe, Water Meter Make-up Pulses |
| Outputs | Alarm Relay, Bio A Pump Via Relay, Bleed Valve Via Relay, Inhibitor Pump Via Relay, ORP Brominator Valve Via Relay |
| Data Logging | Included |
| Max Pressure / Temp | 2.7 bar @ 50°C |
| Port Size | 20mm Solvent Weld |
| Materials | PVC Manifold, Solenoid valves brass |
| IP Rating | IP55 |
