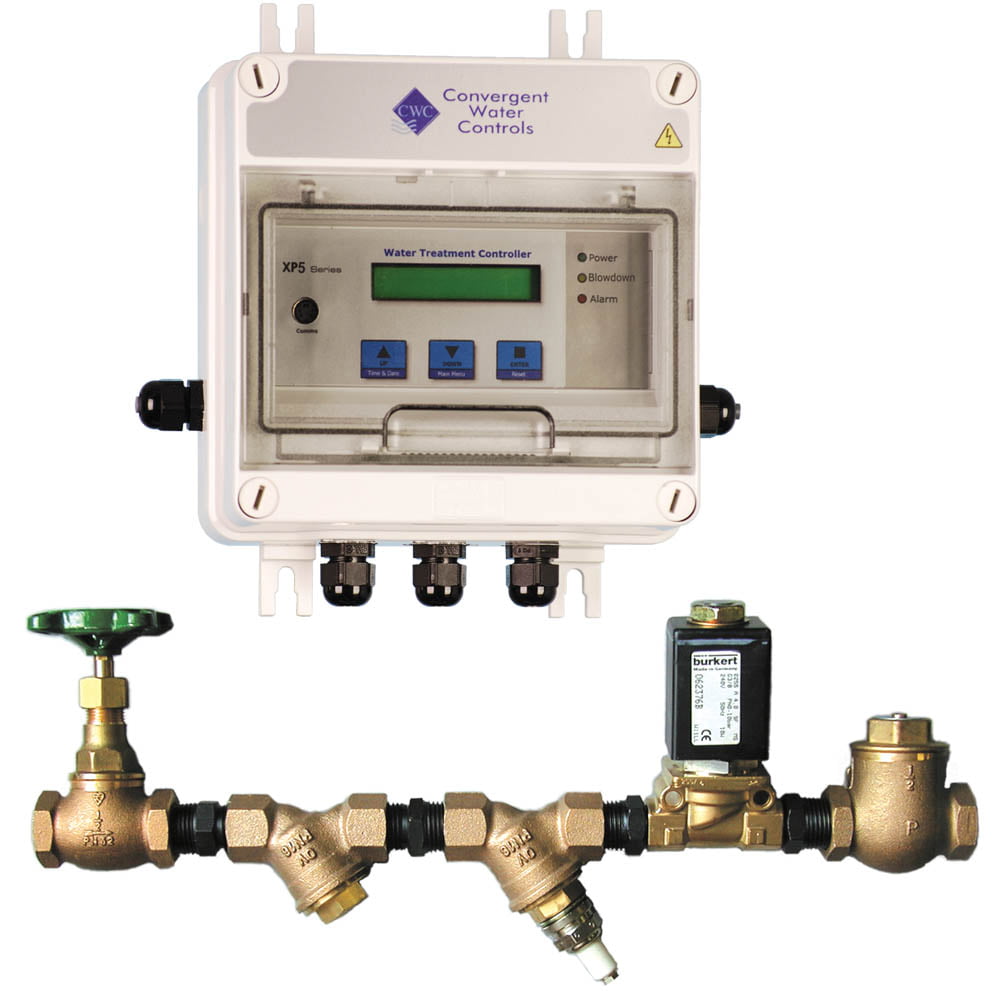

TDS-XP5-BP Boiler TDS Blowdown Controller & Manifold 1
TDS-XP5-BP Boiler TDS Blowdown Controller & Manifold
- Supersedes TDS-JS5
- Complete kit ie. controller & steam rated manifold components
- Blowdown period or idle period starts after every sample depending on conductivity level
- Sample time, Blowdown time & Idle period independently programmable
- High & low TDS alarm
- Weatherproof
Description
TDS-XP5-BP-Assembly-Diagram-v1.1.pdf
TDS-XP5-BP-Spare-Parts-Exploded-Rev-02.pdf
TDS-XP5-BP_AT200BB_T200BB-Boiler-Data-Sheet-v2.0.pdf
TDS-XP5-Instruction-Manual-v1.1.pdf
| Name |
|---|
|
|
|
TDS-XP5-BP-Assembly-Diagram-v1.1.pdf
|
|
TDS-XP5-BP-Spare-Parts-Exploded-Rev-02.pdf
|
|
TDS-XP5-BP_AT200BB_T200BB-Boiler-Data-Sheet-v2.0.pdf
|
|
TDS-XP5-Instruction-Manual-v1.1.pdf
|
Additional information
| Configuration | PVC Backboard Mounted |
|---|---|
| Variables Measured | Conductivity, TDS |
| Outputs | Bleed Valve Via Relay |
| Data Logging | Included |
| Max Pressure / Temp | 10 bar @ 180°C |
| Port Size | 1/2 inch BSP Female |
| IP Rating | IP55 |
