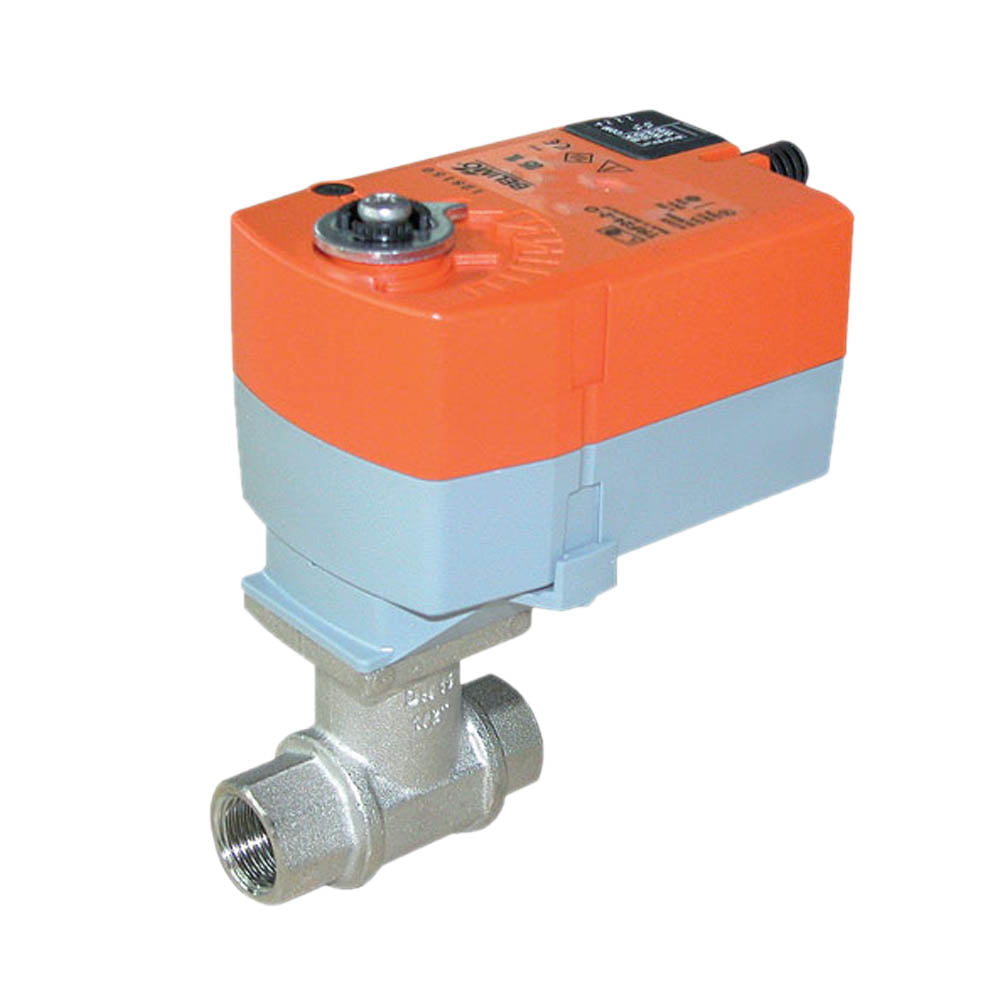

Belimo IP42 TRF230 Actuated Ball Valves (Spring Return) 1
Belimo IP42 TRF230 Actuated Ball Valves (Spring Return)
- 75 seconds power to open, 75 seconds spring to close
- 2Nm Torque
- Reverse Operation via screw & clutch mechanism
- 3.5 Bar at 100°C max operation
- PTFE Seats, SS316 Ball and Stem
- 240Vac (24Vac/dc Version available)
- Manual Override
- Replace xx in SKU with 15 for valve with ½” BSP Female Ports
- Replace xx in SKU with 20 for valve with ¾’’ BSP Female Ports
- Large valve sizes available on request
Description
[dg ids=”17431″]
Belimo-TRF-Series-Data-Sheet
| Name |
|---|
|
Belimo-TRF-Series-Data-Sheet
|
Additional information
| Configuration | Actuated Valve Spring Return |
|---|---|
| Max Pressure / Temp | 3.5 bar @ 100°C |
| Port Size | 1 inch BSP Female, 1/2 inch BSP Female, 3/4" BSP Female |
| Materials | Nickel plated brass body, SS ball, PTFE seal, EPDM seal |
| IP Rating | IP42 |
