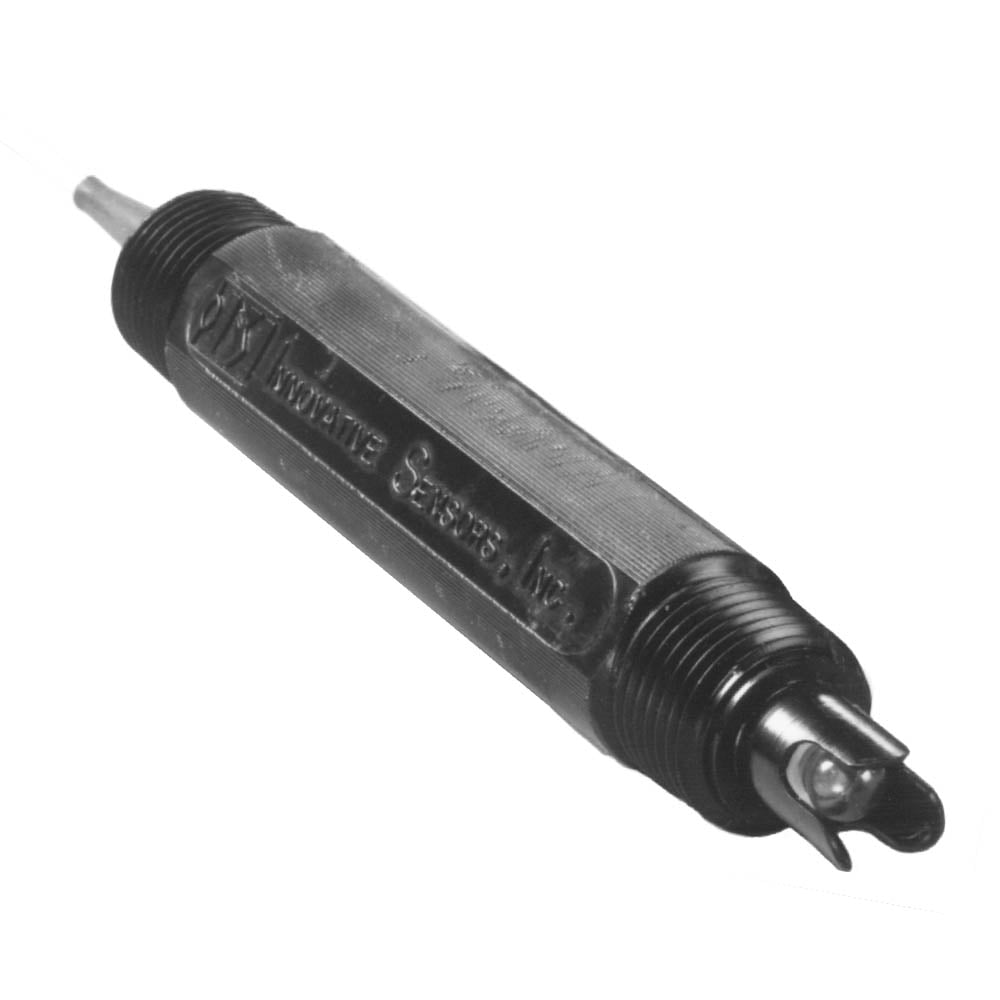

WA OPF10-NNN10 (M-10-A-PH) 1/2 inch MNPT pH Probe 1
WA OPF10-NNN10 (M-10-A-PH) 1/2 inch MNPT Threaded pH Probe
- Non-fouling porous Teflon Liquid Junction
- Large reference electrolyte reservoir
- Threaded 1/2 inch NPT ends allows submersion with submersible probe holder
- Standard cable length 3.3m with BNC (also available in 10m and 15m lengths)
- Part code WA M-10-A-SN6 has SN6 (NSA) connector fitted instead of fixed cable
- Part code EMEC CASN6 cable for WA M-10-A-SN6 (5, 10 or 15 metre lengths)
Description
AN040 pH & ORP Electrode Questionnaire
General Instructions for pH/ORP Probes
WA OPF10 Data Sheet
| Name |
|---|
|
AN040 pH & ORP Electrode Questionnaire
|
|
General Instructions for pH/ORP Probes
|
|
WA OPF10 Data Sheet
|
Additional information
| Variables Measured | pH |
|---|---|
| Outputs | pH |
| Max Pressure / Temp | 6.9 bar @ 80°C |
| Process Connection | 1/2 inch MNPT |
| Materials | FPM Viton O-rings, Ryton Body |
| IP Rating | IP65 |
