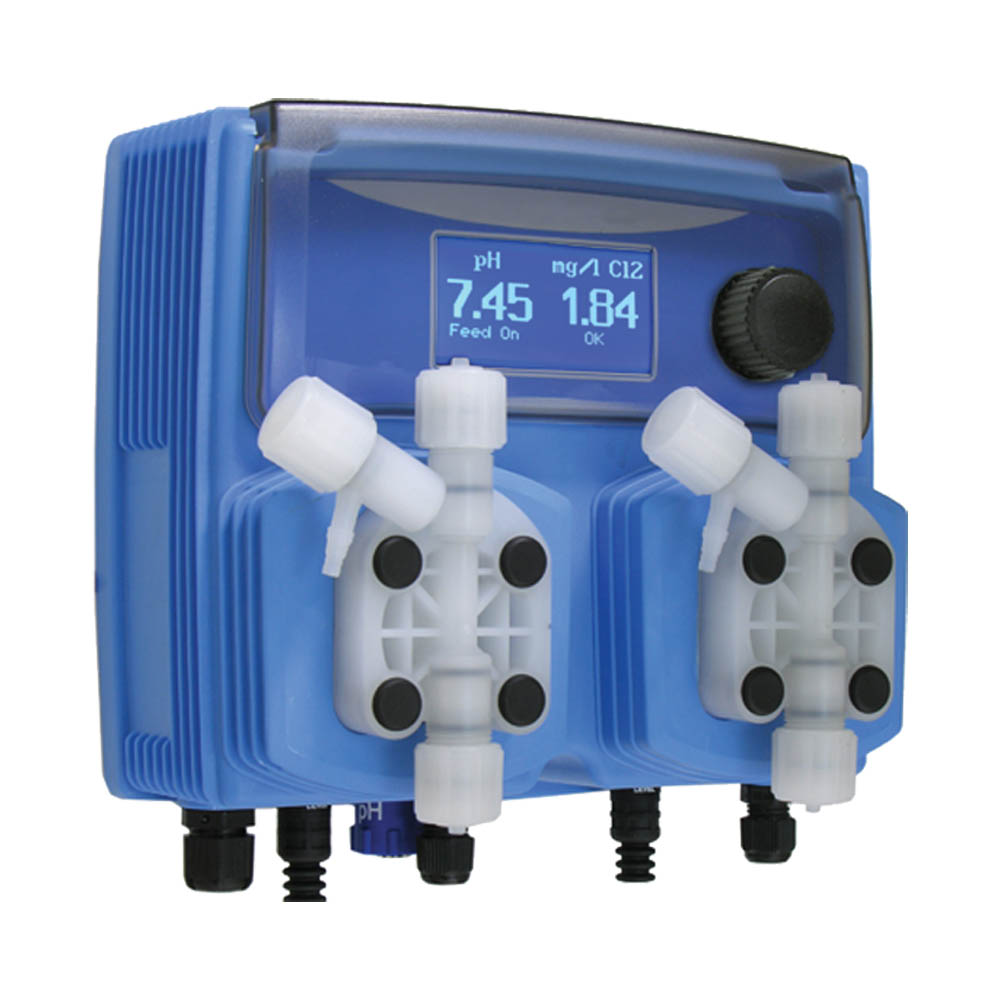

EMEC WDPHCL Pool Controller pH & Free Chlorine (7l/hr/3b) 1
EMEC WDPHCL pH & Cl2 Controller for ECL6 Open Cell Amperometric Sensors
- Controls levels of Chlorine (ie. ORP) & Acid (ie. pH) in Swimming Pools
- Designed to measure ppm Chlorine, and compensate for pH, with Open Amerometric Cell (EMEC ECL6) and pH Probe (EMEC EPHS) – Sold Separately
- Reliable & accurate dosing with self venting (de-gassing) head on Chlorine pump
- Floats on foot valves stop pumps dosing when chemical level in tanks is low – individually controlled for Chlorine & Acid Pumps
- Standby input stops both pumps (activated by contact closure)
- Speed adjustment automatic (demand dependent)
- Double ball check valves in foot valve, suction & discharge valves
- Solid Teflon diaphragm prevents wear
- PVDF Heads, Spring loaded injection valves with ceramic balls
- Simple mounting
SKU: EMEC WDPHCL 0310 0307
Categories: Controllers & Components for ECL6 Open Cell Sensors, Pool Controllers
Tag: emec controllers
Brand: emec
Description
EMEC Chemical Compatibility Table April 2013
EMEC WDPHCL Data Sheet R1-12-08
EMEC WDPHCL Instruction Manual R5-07-16
| Name |
|---|
|
EMEC Chemical Compatibility Table April 2013
|
|
EMEC WDPHCL Data Sheet R1-12-08
|
|
EMEC WDPHCL Instruction Manual R5-07-16
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Cl2, Flow Status, pH |
| Inputs | Flow Switch Contact, ORP Probe, pH Probe, Standby Dry Contact, Tank Level Dry Contact |
| Outputs | Alarm Relay |
| Remote Comms | Via Optional LAN card, Via Optional Modem |
| Max Flow / Pressure (Head) | 10 l/hr @ 3 bar, 7 l/hr @ 3 bar |
| Process Connection | 1/2 inch BSP Male |
| Materials | Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PP Valve Bodies, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls |
| Max Viscosity | 100 cps |
| IP Rating | IP65 |
| Install Kit Included | 4x6mm tube, 2 x injection valves & 2 x foot valves with level floats |
| Optional Tube Size | 1/4 inch, 3/8 inch, 5×8 or 6x9mm |
