EMEC J DIG PH Panel mount Controller/Transmitter 1

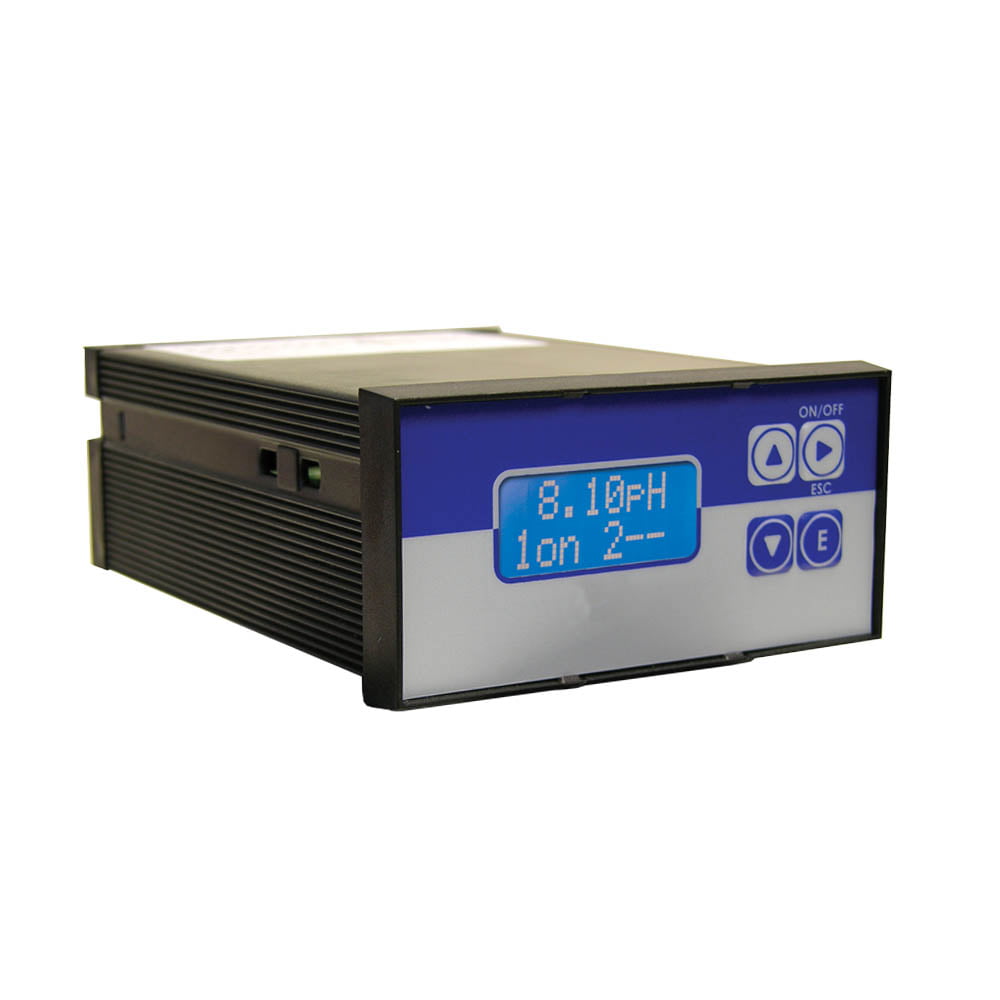

EMEC J DIG PH Panel mount Controller/Transmitter
- Panel mount housing 48 x 96 x 140 mm
- Programmable for dosing acid or base
- 2 Setpoints: ON/OFF or Proportional with ON/OFF modulation
- Backlit LCD displays measured pH
- Automatic Temperature Compensation
- 4-20mA output for pH
Description
EMEC J DIG pH Instruction Manual R1-11-03
EMEC J DIG PH Data Sheet
| Name |
|---|
|
EMEC J DIG pH Instruction Manual R1-11-03
|
|
EMEC J DIG PH Data Sheet
|
Additional information
| Variables Measured | pH |
|---|---|
| Inputs | Flow Switch Contact, pH Probe |
| Outputs | 4-20mA, Volt Free Contacts NO/NC |
| IP Rating | not specified |
