EMEC LDPHPH-mA Dual pH Controller 1
SALE

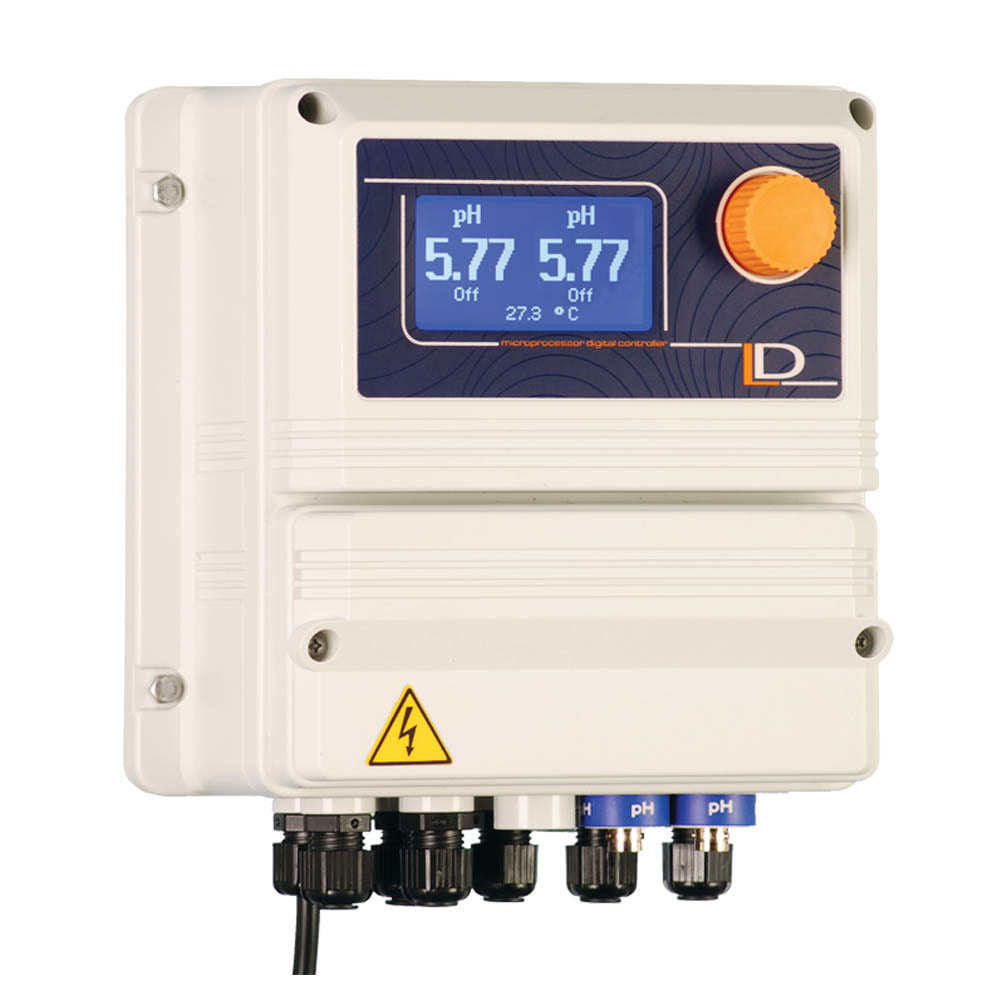

EMEC LDPHPHT Dual pH Controller
- Programmable for control of 2 individual pH systems
- Proportional or On/Off Control 2 x pH systems
- Outputs: 1 x pH1 240Vac Relay, 2 x pH1 Pulse, 1 x pH2 240Vac Relay, 1 x pH2 Pulse, 3 x mA for pH1, pH2 & Temp
- Tanks Level inputs: 2 x pH1, 1 x pH2
- Other I/O: 1 x Standby I/P, 1 x 240Vac Alarm Relay O/P, 1 x RS485 O/P
- LCD displays shows both measured pH values
- Manual/Automatic Temperature Compensation (for pH only)
- Max dosing alarms
- Optional GSM/GPRS modem or Ethernet/LAN card for remote connectivity via webserver and alarming via SMS/e-mail
- ERMES Ready – Remote access via 4G, WiFi, Ethernet with live readings
SKU: EMEC LDPHPHT-mA
Categories: pH & Dual pH Controllers, pH & pH
Tag: emec controllers
Brand: emec
Description
EMEC LDPHPH & LDPHPHT Instruction Manual R6-10-21
EMEC LDPHPH Data Sheet R2025
| Name |
|---|
|
|
|
EMEC LDPHPH & LDPHPHT Instruction Manual R6-10-21
|
|
EMEC LDPHPH Data Sheet R2025
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Flow Status, pH, Temperature |
| Inputs | Flow Switch Contact, pH Probe, Standby Dry Contact, Tank Level Dry Contact |
| Outputs | 4-20mA, Alarm Relay, Optional Modbus, Pulse, Switched Relays For Optional Pumps/Valves |
| Remote Comms | Via Optional LAN card, Via Optional Modbus, Via Optional Modem |
| IP Rating | IP65 |
