EMEC LDPHCDIND-mA Dual pH and Inductive Conductivity Controller 1
SALE

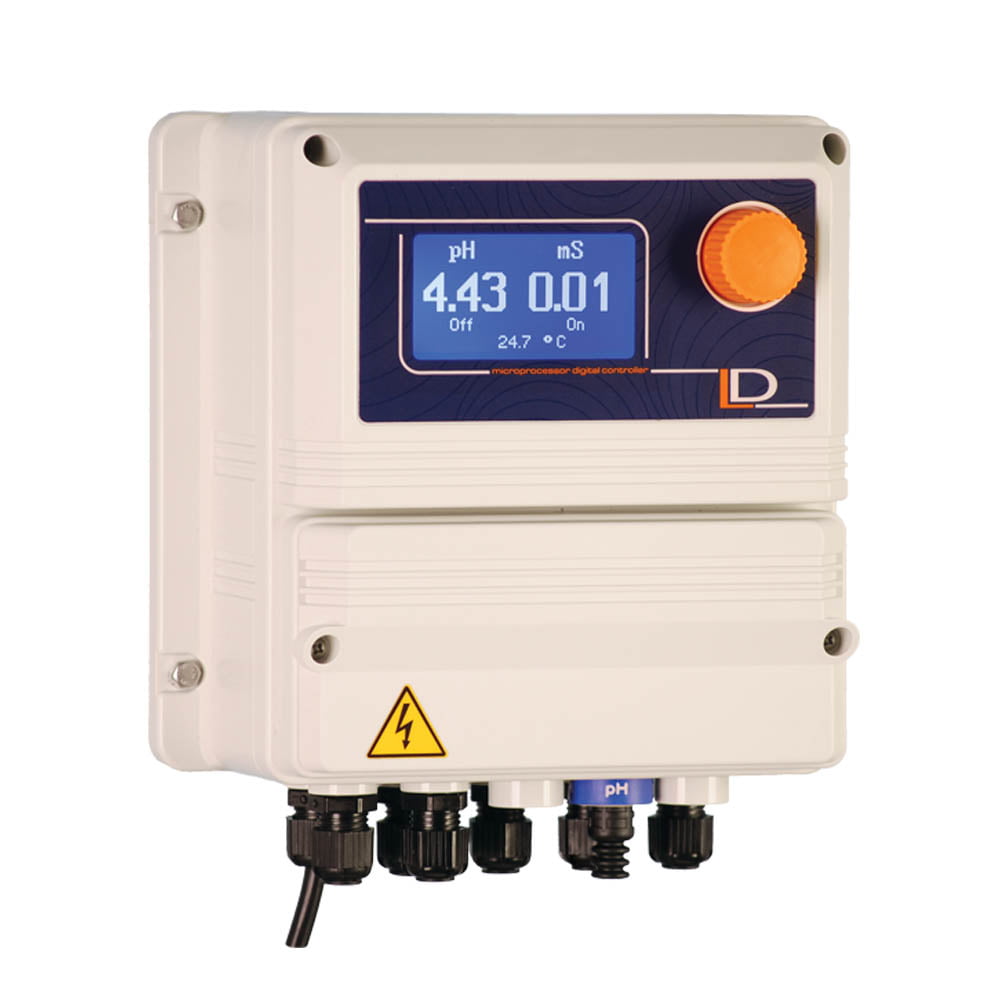

EMEC LDPHCDIND pH and Inductive Conductivity Controller
- Programmable for dosing acid and/or base, and Conductivity control
- Proportional or On/Off Control for pH and Conductivity
- Outputs: 1 x pH 240Vac Relay, 2 x pH Pulse, 1 x Conductivity 240Vac Relay, 1 x Conductivity Pulse, 3 x mA for pH, Conductivity & Temp
- Tanks level inputs: 2 x pH, 1 x Conductivity
- Other I/O: 1 x Standby I/P, 1 x 240Vac Alarm Relay O/P, 1 x RS485 O/P
- LCD displays show measured pH and Conductivity (mS)
- Manual/Automatic Temperature Compensation (for pH only)
- Max dosing alarms
- Requires optional pH & ECDINDPT inductive conductivity probes
- Optional GSM/GPRS modem or Ethernet/LAN card for remote connectivity via webserver and alarming via SMS/e-mail
- ERMES Ready – Remote access via 4G, WiFi, Ethernet with live readings
SKU: EMEC LDPHCDIND-mA
Categories: LD Series Surface Mount IP65, pH & Conductivity
Tag: emec controllers
Brand: emec
Description
EMEC LD Dual & LD Dual PLUS Data Sheet R2-06-20
EMEC LDPHCD-LDPHCDIND Instruction Manual R5-05-13
| Name |
|---|
|
|
|
EMEC LD Dual & LD Dual PLUS Data Sheet R2-06-20
|
|
EMEC LDPHCD-LDPHCDIND Instruction Manual R5-05-13
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Conductivity, Flow Status, pH, Temperature |
| Inputs | Flow Switch Contact, Inductive Conductivity Probe & PT100, pH Probe, Standby Dry Contact, Tank Level Dry Contact |
| Outputs | 4-20mA, Alarm Relay, Optional Modbus, Pulse, Switched Relays For Optional Pumps/Valves |
| Remote Comms | Via Optional LAN card, Via Optional Modbus, Via Optional Modem |
| IP Rating | IP65 |
