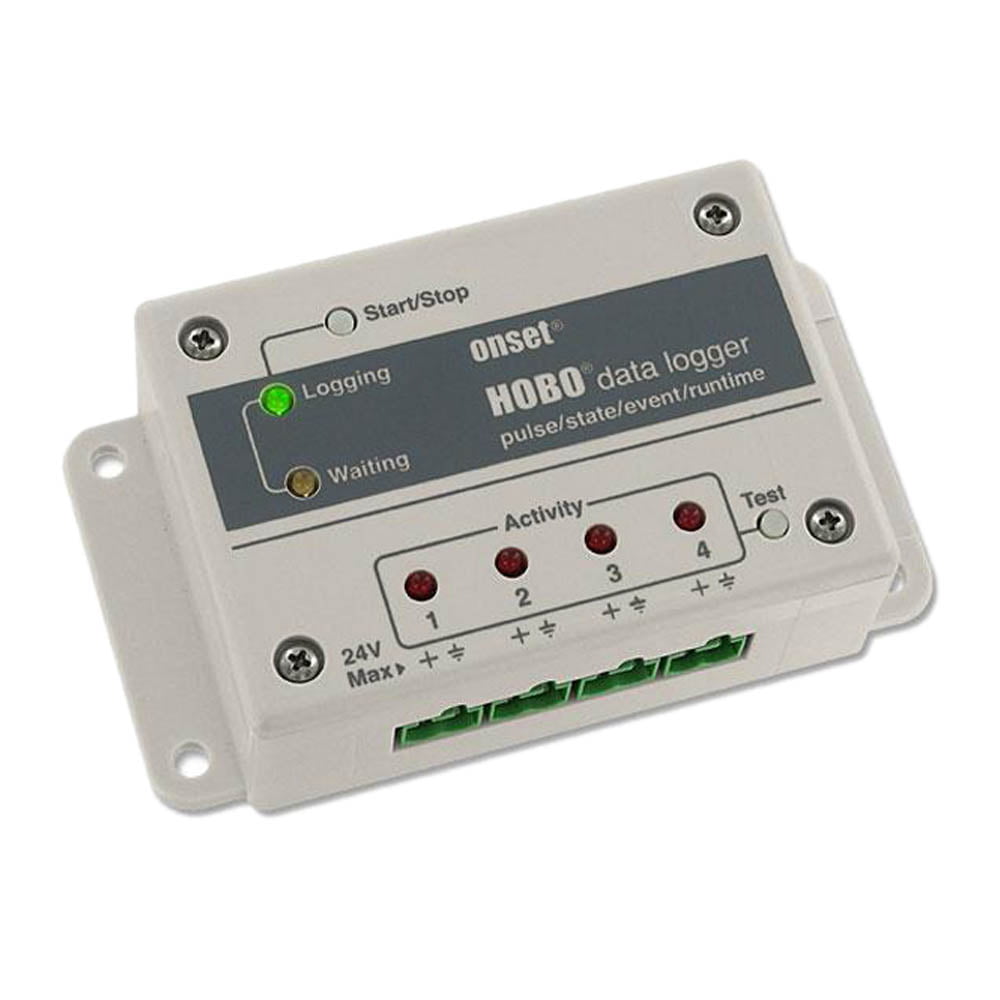

HOBO UX120-017 Data Logger 4 Channel Pulse Input 1
HOBO UX120-017 Data Logger 4 Channel Pulse Input
- 4 Channels of external input for Electronic solid state switch closure or logic driven digital signals to 24V
- Storage for over 500,000 measurements or events
- 4 – 32-bit Resolution (depending on pulse rate and logging interval)
- Max pulse frequency 120 Hz
- Sample rate can be configured from 1 second to 18 hours
- Wide range of start/stop options
- Optional IP66 Enclosure, part number: HOBO H0-IP66
- Compact size (114x63x33mm)
- Uses standard user replaceable AA battery with typical life of 1 year
- User friendly free software downloadable from the Downloads menu
- Supersedes HOBO U11-001
Description
HOBO UX120-017 Data Sheet
HOBO UX120-017 Instruction Manual
| Name |
|---|
|
HOBO UX120-017 Data Sheet
|
|
HOBO UX120-017 Instruction Manual
|
Additional information
| Inputs | Standby Dry Contact |
|---|---|
| Data Logging | Included |
| IP Rating | not specified |
