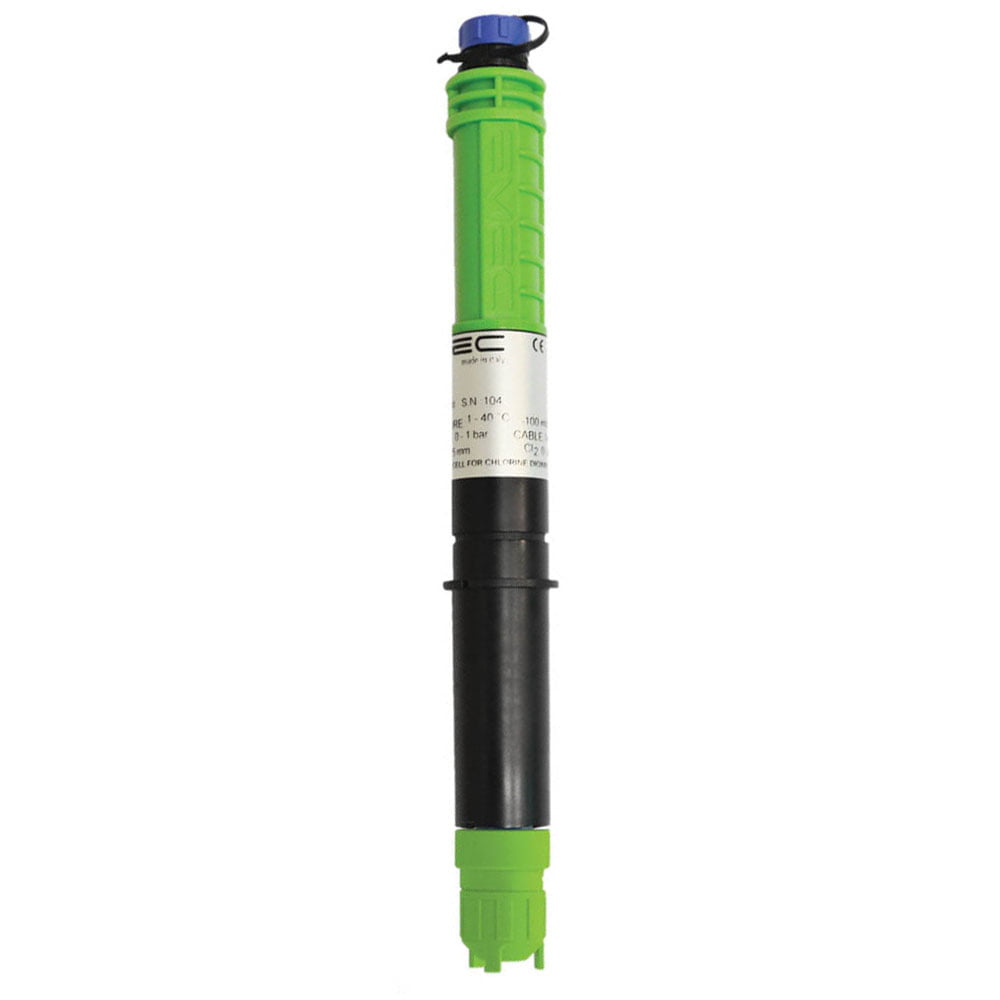

EMEC-SCL3 vertical

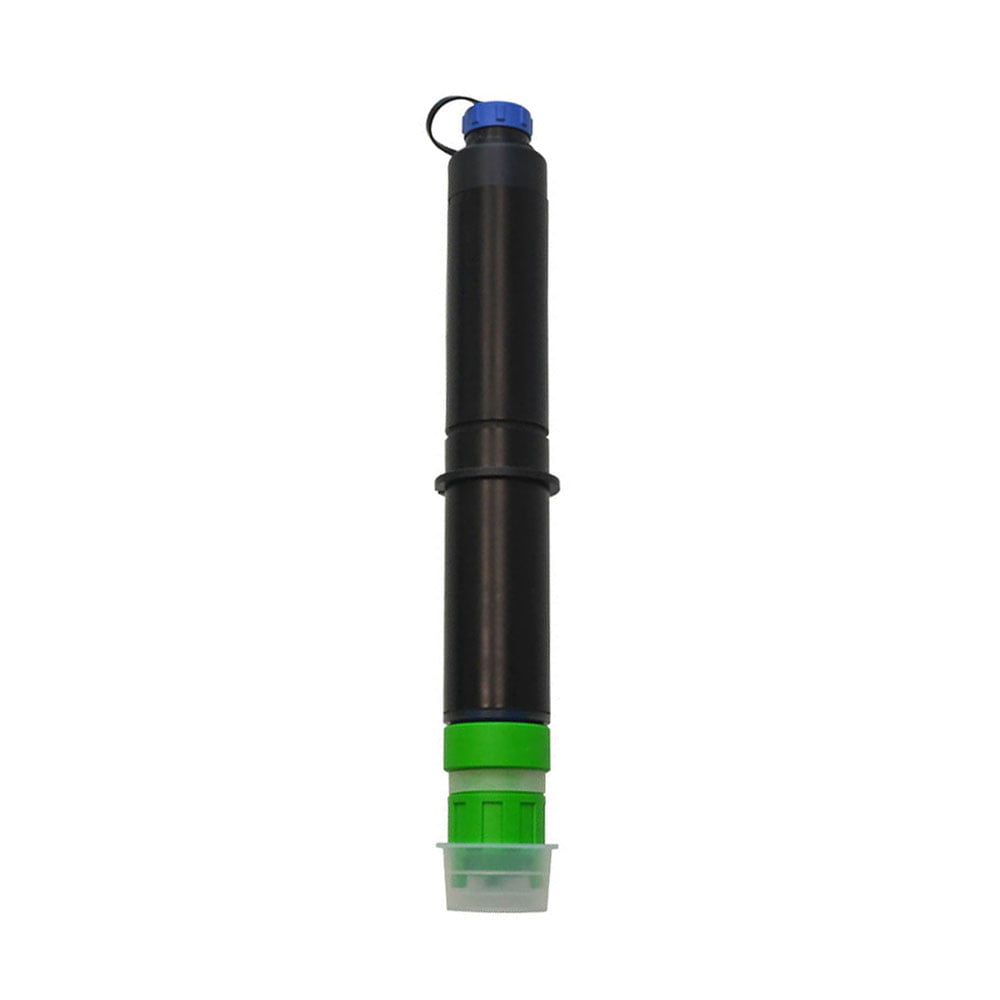

EMEC-SVCL3 vertical

EMEC SCL3N/SVCL3N Free Chlorine Amperometric Sensors

  • Free (Available) Chlorine Measurement for Sodium Hypochlorite
  • Probes available for measuring ranges of 0-2mg/L or 0-20mg/L (SCL3N/20)
  • pH buffered with max 10% error per pH point
  • Temperature Compensated for 1-40°C Operation
  • 1 Bar Max Pressure
  • Max pH of 9
  • Digital interface to controller, i.e auto sensor and range detect (SCL only)
  • Analogue interface to controller (SVCL only)
  • TIP:  see available Models / Part Numbers below
Compare
Request Quote
SKU: EMEC SCL3N Categories: , , , , Brand:

Description

EMEC SCL 2_3_8_9_10_11 & SBR Instruction Manual R3-05-21
EMEC-SCL-Data-Sheet-R11-19
EMEC-SVCL-Data-Sheet-R1-12-16
EMEC-SVCL-Instruction-Manual-R2-09-18
EMEC SCL 2_3_8_9_10_11 & SBR Instruction Manual R3-05-21
EMEC-SCL-Data-Sheet-R11-19
EMEC-SVCL-Data-Sheet-R1-12-16
EMEC-SVCL-Instruction-Manual-R2-09-18
Name
EMEC SCL 2_3_8_9_10_11 & SBR Instruction Manual R3-05-21
EMEC-SCL-Data-Sheet-R11-19
EMEC-SVCL-Data-Sheet-R1-12-16
EMEC-SVCL-Instruction-Manual-R2-09-18

Additional information

Variables Measured

Cl2, Temperature
Max Pressure / Temp

0.5 bar @ 40°C
IP Rating

IP65
Interface

Analogue, Digital

Models / Part Numbers

  • EMEC SCL3N/2 Digital probe for LDSCL/LDSCLP/Centurio controller (0-2 ppm)
  • EMEC SCL3N/20 Digital probe for LDSCL/LDSCLP/Centurio controller (0-20 ppm)
  • EMEC SVCL3N/2 Analogue probe for LDCL controller (0-2 ppm)
  • EMEC SVCL3N/20 Analogue probe for LDCL controller (0-20 ppm)
  • EMEC SVCL3N/2 supersedes EMEC ECL3N/2
  • EMEC SVCL3N/20 supersedes EMEC ECL3N/10

Videos

SCL3N/SCL3S Amperometric Sensor Preparation

SCL3N/SCL3S Amperometric Sensor Commissioning in PEF
