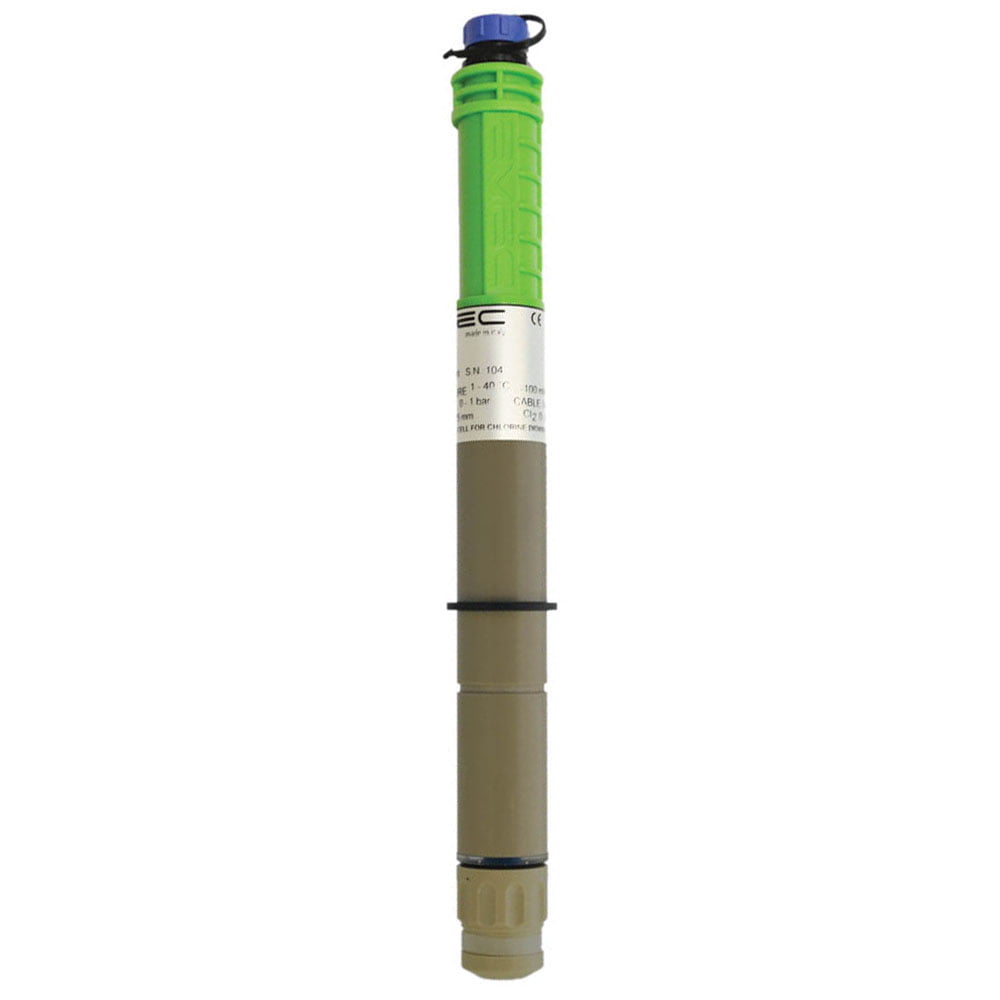

EMEC-SCL17 vertical

EMEC SCL17/SVCL17 Chlorine Dioxide Amperometric Sensors (Auto Cleaning)

Chlorine Dioxide Measurement
Self Cleaning
Probes available for measuring ranges of 0-2mg/L or 0-20mg/L
Temperature Compensated for 5-70°C Operation
8 Bar Max Pressure
Range 5-9 pH
Digital interface to controller, i.e auto sensor and range detect (SCL only)
Analogue interface to controller (SVCL only)
TIP: see available Models / Part Numbers below

SKU: EMEC SCL17 Categories: Amperometric Sensors, Sensors Brand: emec

Description

EMEC SCL17 & SCL18 Instruction Manual R3-05-21

EMEC-SCL-Data-Sheet-R11-19

EMEC-SVCL-Data-Sheet-R1-12-16

EMEC-SVCL-Instruction-Manual-R2-09-18

Name
EMEC SCL17 & SCL18 Instruction Manual R3-05-21
EMEC-SCL-Data-Sheet-R11-19
EMEC-SVCL-Data-Sheet-R1-12-16
EMEC-SVCL-Instruction-Manual-R2-09-18

Additional information

Variables Measured	CLO2, Temperature
Max Pressure / Temp	8 bar @ 70°C
IP Rating	IP65
Interface	Analogue, Digital

Models / Part Numbers

EMEC SCL17/2 Digital probe for LDSCL/LDSCLP/Centurio controller (0-2 ppm)
EMEC SCL17/20 Digital probe for LDSCL/LDSCLP/Centurio controller (0-20 ppm)
EMEC SVCL17/2 Analogue probe for LDCL controller (0-2 ppm)
EMEC SVCL17/20 Analogue probe for LDCL controller (0-20 ppm)

EMEC SVCL17/2 supersedes EMEC ECL17/2
EMEC SVCL17/20 supersedes EMEC ECL17/10
