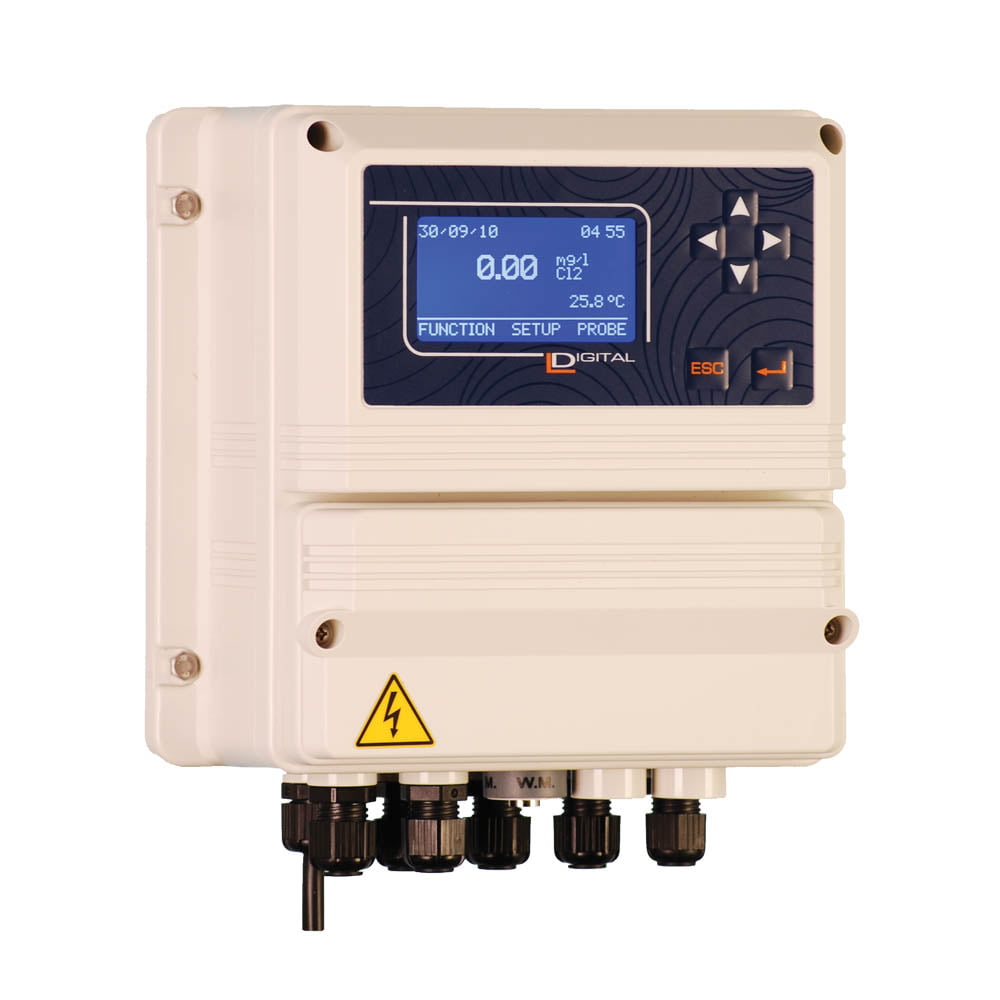

EMEC LDCL Chlorine / Chlorine Dioxide Controller 1
EMEC LDCL CL2 Controller for ECL6 Open Cell & SVCL Amperometric Sensors
- Programmable for use with full range of amperometric cells (eg. for measuring free chlorine, total chlorine, chlorine dioxide, hydrogen peroxide, ozone or peracetic acid)
- 2 x Proportional Outputs & 2 x ON/OFF outputs
- Dot matrix backlit LCD displays measured Chlorine (mg/L), temperature, date & time
- Programmable power-on delay
- High and low mg/L, and max dosing alarms
- 4-20mA for mg/L & 4-20mA for temperature
- Serial port for printer allows log printing
- RS485 for remote control
- Programmable cleaning output
Description
EMEC LDCL Data Sheet R2-01-07
EMEC LDCL Instruction Manual R1-10-06
| Name |
|---|
|
EMEC LDCL Data Sheet R2-01-07
|
|
EMEC LDCL Instruction Manual R1-10-06
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Cl2, CLO2, Flow Status, H2O2 |
| Inputs | Amperometric Sensor, Flow Switch Contact, Standby Dry Contact, Tank Level Dry Contact |
| Outputs | 4-20mA, Alarm Relay, Pulse, Switched Relays For Optional Pumps/Valves |
| IP Rating | IP65 |
