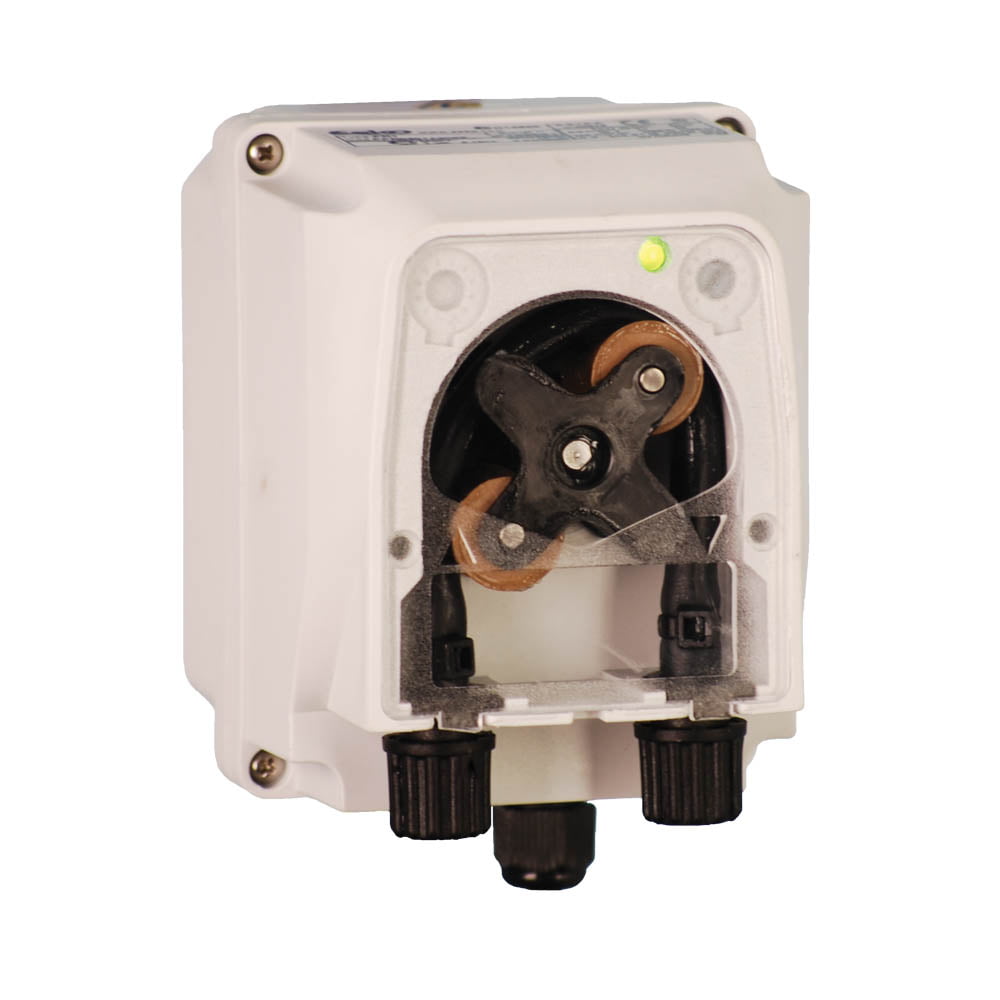

SEKO PR-1-FP Peristaltic Pump 0.3-1.0 l/hr, 2
SEKO PR-1-FP Peristaltic Pump 0.3-1.0 l/hr, 2.9 bar
- Includes foot valve, Injection valve, 2M of Suction tubing and 2M of Discharge tubing
- Self priming
- Shockproof & resistant to chemical aggression
- Easy maintenance
- Dose rate adjustable
- LED indication
- Easy mounting
- Reliable & Accurate Dosing
- Not rated for continuous operation – must be run on a duty cycle
- Supplied with 2 metre power lead with stripped conductors (i.e. no mains plug)
Description
EMEC V Series & SEKO Installation Instructions v1.0
SEKO Chemical Compatibility July 2012
SEKO PE & PR Data Sheet v2
SEKO PR-1-FP Spare Parts Exploded Rev 01
| Name |
|---|
|
|
|
EMEC V Series & SEKO Installation Instructions v1.0
|
|
SEKO Chemical Compatibility July 2012
|
|
SEKO PE & PR Data Sheet v2
|
|
SEKO PR-1-FP Spare Parts Exploded Rev 01
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Max Flow / Pressure (Head) | 1 l/hr @ 2.9 bar |
| Process Connection | 1/2 inch BSP Male |
| Materials | Proprietary EPDM Squeeze Tube, PP & PVDF fittings |
| IP Rating | IP65 |
| Install Kit Included | 4x6mm tube, mounting bracket, injection valve & suction filter weight |
