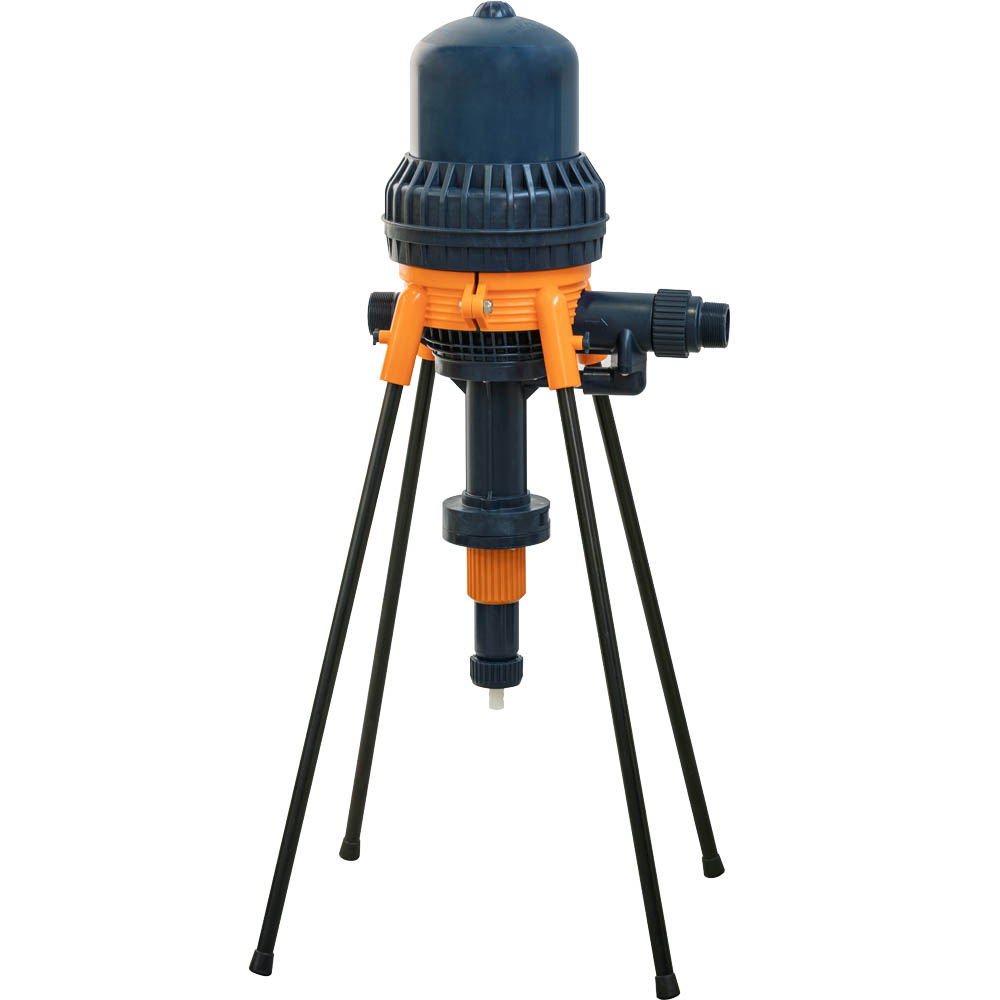

MIXTRON PEDESTAL P055 Water Powered Dosing Pump 0.5-5%

  • Water powered dosing pumps, Water powered proportional dosing pumps, Water driven dosing pumps, Water driven proportional dosing pumps, Fertiliser Injector
  • Dosing Ratio: 0.5 – 5 % of water flow rate
  • Water Flow Rate up to 13 kL/hr
  • Operating Pressure: 0.3 – 8 bar (max 10 bar static)
  • Water temp: 5 – 40°C
  • Max vertical suction: 5m
  • Max horizontal suction: 20m
  • Ports 2″ Male BSPT
  • Applications: Livestock, Fertigation, Metal working, Car Washing
  • Includes: 4 Pedestal Feet, 1.8m suction tube & foot filter
Compare
SKU: MX xxx P055 B Category: Brand:

Description

Welcome to Mixtron by CWC hbspt.cta.load(4586940, ‘c4effada-5244-4d3c-afc6-67d126c0cbe7’, {});

Mixtron-MX-1100-1300-Operation-and-Maintenance-Manual-Oct-20.pdf
Mixtron-MX.1100-B-MX.1300-B_ENG.pdf
Mixtron-Product-Summary-2023.pdf
Mixtron-MX-1100-1300-Operation-and-Maintenance-Manual-Oct-20.pdf
Mixtron-MX.1100-B-MX.1300-B_ENG.pdf
Mixtron-Product-Summary-2023.pdf
Name

Additional information

Configuration

Wall Mount

Max Pressure / Temp

0.3 – 8 bar water pressure / 5 – 40°C

Process Connection

2 inch Male BSPT

Materials

POM, VITON Seals (EDPM on request)

Max Viscosity

400 Centistokes @ 25 deg Celsius

IP Rating

IP68 (Mount Out of Direct Sun)

Install Kit Included

Bracket, 1.5m suction tube & foot filter

Models / Part Numbers

Water Flow Rates:

  • MX 1100 P055 B (1 – 11,000 l/hr, 11 m3/hr max)
  • MX 1300 P055 B (1 – 13,000 l/hr, 13 m3/hr max)
