MX-900-P022

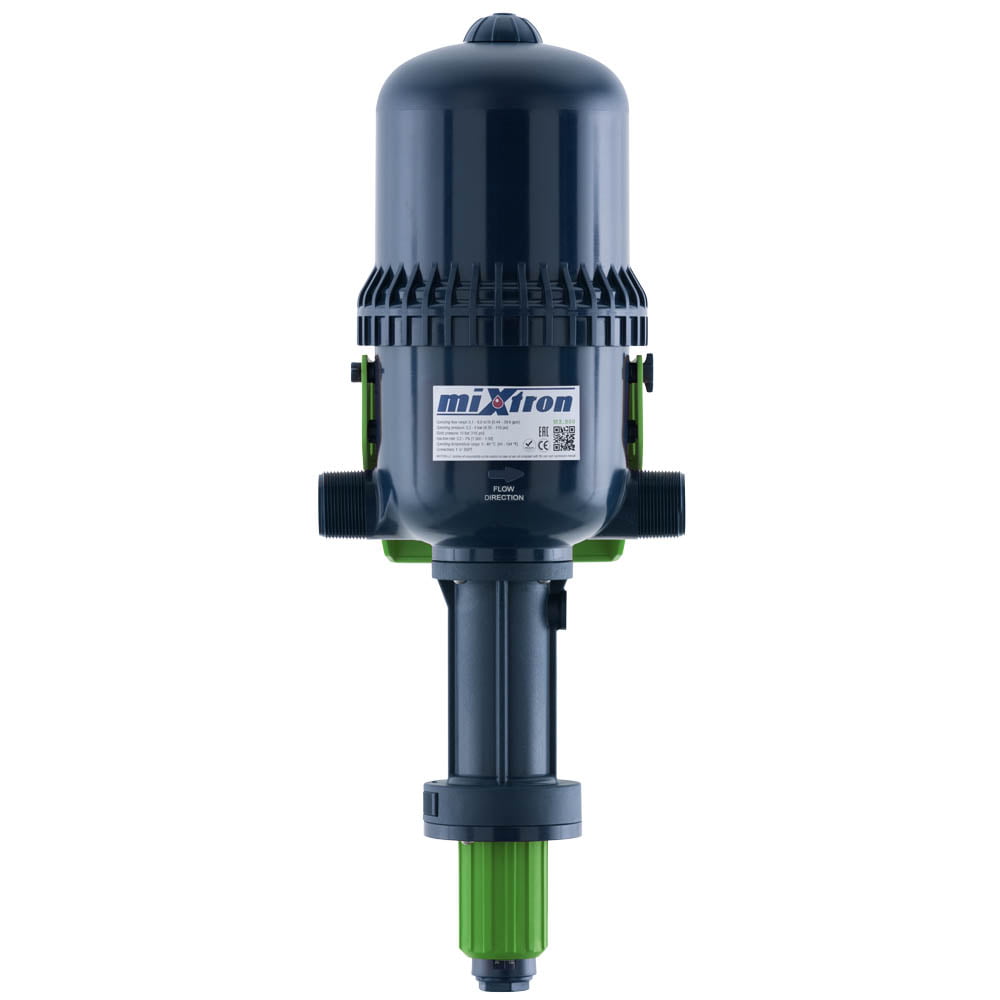

MIXTRON P022 Reliable Water Powered Dosing Pump with 0.2-2% Ratio
The Mixtron P022 offers precise, eco-friendly dosing with a 0.2-2% water flow ratio. Ideal for livestock, fertigation, car washing, and water treatment, this pump provides reliable dosing without the need for electricity.
Key Features:
- Precise Dosing Ratio: 0.2-2% of water flow rate
- Applications: Suitable for livestock, fertigation, car washing, and water treatment
- Eco-Friendly: Operates solely on water flow, no electricity needed
- Complete Kit: Includes bracket, 1.5m suction tube, and foot filter
- Optional Hose Extension: Additional 12x17mm suction hose available (order MX 1840002 per metre)
The Mixtron P022 is your dependable choice for consistent, proportional dosing across diverse applications.
Description
hbspt.cta.load(4586940, ‘c4effada-5244-4d3c-afc6-67d126c0cbe7’, {});
MX.500.P022
MX.700.P022
MX.900.P022
Mixtron Full Product Brochure 2019
Mixtron MX medium range pumps Instruction Manual
Mixtron Product Summary 2023
| Name |
|---|
|
MX.500.P022
|
|
MX.700.P022
|
|
MX.900.P022
|
|
Mixtron Full Product Brochure 2019
|
|
Mixtron MX medium range pumps Instruction Manual
|
|
Mixtron Product Summary 2023
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Max Pressure / Temp | 0.3 – 8 bar water pressure / 5 – 40°C |
| Process Connection | 1-1/2 inch BSP Male |
| Materials | POM/PP/HDPE, VITON Seals (EDPM on request) |
| Max Viscosity | 400 Centistokes @ 25 deg Celsius |
| IP Rating | IP68 (Mount Out of Direct Sun) |
| Install Kit Included | Bracket, 1.5m suction tube & foot filter |
Models / Part Numbers
Water Flow Rates:
- MX 500 P022 (500 – 5000 l/hr, 5 m3/hr max)
- MX 700 P022 (700 – 7000 l/hr, 7 m3/hr max)
- MX 900 P022 (900 – 9000 l/hr, 9 m3/hr max)
