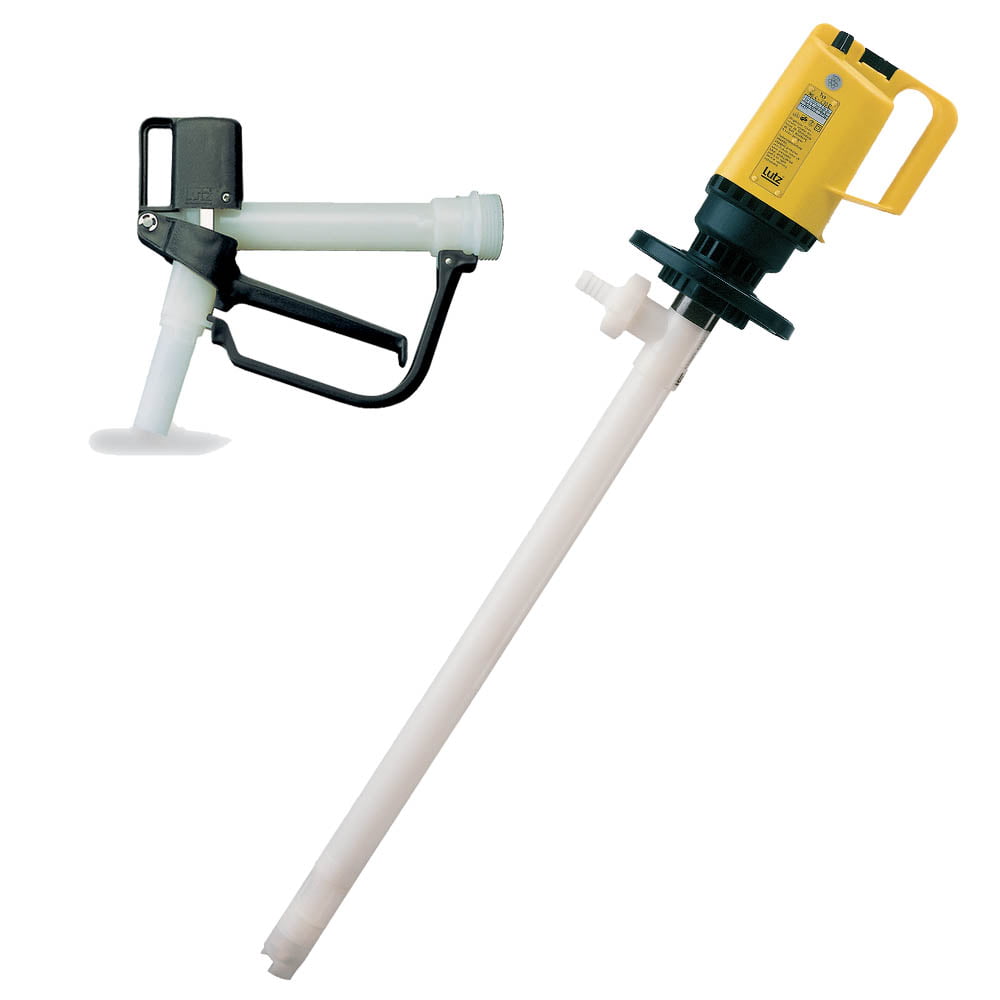

LUTZ MI4-E-PVDF41-L-SL-120-N Drum Pump PVDF with Dispenser 1
LUTZ MI4-E-PVDF41-L-SL-120-N Drum Pump PVDF with Dispenser
- Variable Speed 230VAC motor coupled to pump
- Shaft length 1200mm (Other lengths available on request, e.g. 1000mm)
- Pump tube PVDF for highly corrosive chemicals and neutral liquids
- Max Density of chemical 1.4 SG. Please request model with fixed speed motor for higher SG
- Supplied with PVDF Dispensing Nozzle, adaptor and 1.5m hose
Description
LUTZ MI4-E-PVDF N Data Sheet
| Name |
|---|
|
LUTZ MI4-E-PVDF N Data Sheet
|
Additional information
| Max Flow / Pressure (Head) | 87 l/min / 19m head |
|---|---|
| Materials | PVDF Body |
| Max Viscosity | 500 cps |
| IP Rating | IP24 |
