EMEC AMSCOPLUS LPV (15 l/hr to 60l/hr) High Viscosity Heads

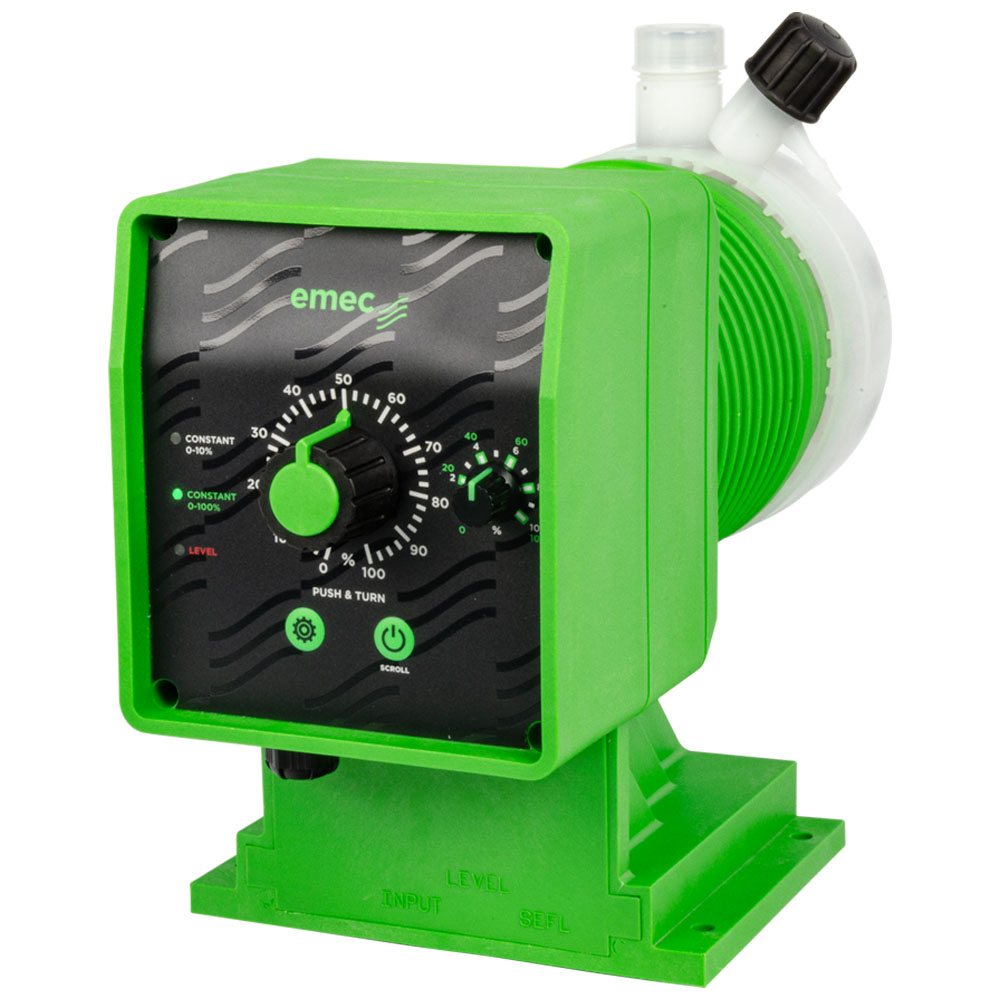

EMEC AMSPCOPLUS 01 40 Very High Viscosity Pump (50,000 cps max)
- 40 LPH max at 1 bar injection pressure
- Transparent PMMA Acrylic head with 16×22 Delivery hosetail and 20x27mm Suction hosetail
- Reliable & accurate dosing up to 50,000 cps
- Adjustable stroke length (10-100%)
- Solid Teflon diaphragm prevents wear
- Includes suction and delivery hose and syringe for priming
- Simple mounting
SKU: EMEC AMSPCO 01 40 FP PTFE PMMA
Category: High Viscosity (Polymer) Pumps
Tag: emec pumps
Brand: emec
Description
EMEC AMSP Data Sheet R2025
EMEC AMSP PLUS Instruction Manual R1-07-17
| Name |
|---|
|
EMEC AMSP Data Sheet R2025
|
|
EMEC AMSP PLUS Instruction Manual R1-07-17
|
Additional information
| Configuration | Foot Mount, Wall Mount with Optional Bracket |
|---|---|
| Max Flow / Pressure (Head) | 15 l/hr @ 10 bar, 60 l/hr @ 2 bar |
| Process Connection | 3/4 inch BSP Male |
| Materials | FKM B Viton O-rings, PMMA Acrylic Transparent Head, PP Valve Bodies, PTFE Diaghragm/s, PTFE Teflon Seats, SS Balls |
| Max Viscosity | 50000 cps |
| IP Rating | IP65 |
| Install Kit Included | 16×22 suction hose, 8x12mm delivery tube & injection valve in LPV models |
