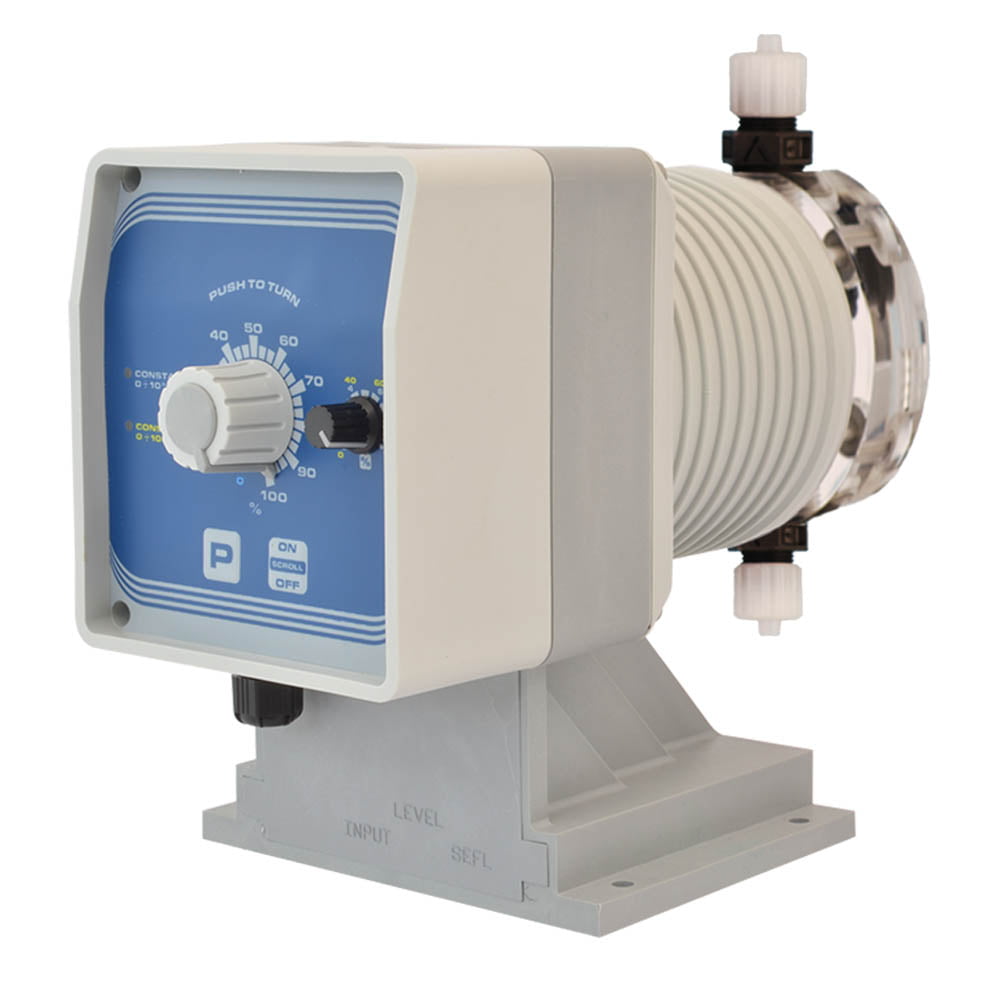

EMEC AMSCOPLUS LPV (15 l/hr to 60l/hr) High Viscosity Heads
EMEC AMSCOPLUS LPV (15 l/hr to 60l/hr) High Viscosity Heads
- Includes 3/4 inch Injection valve, 2M of Suction Hose and 2M of Discharge tubing
- Reliable & accurate dosing up to 8,000 cps
- Transparent Acrylic Head with 1/2 inch SS Balls
- 16x22mm Suction Hose and 8×12 Discharge Valve
- Adjustable stroke length (10-100%)
- Solid Teflon diaphragm prevents wear
- Spring loaded injection valve with ceramic ball
- Simple mounting
Description
EMEC AMSCOPLUS_AMSPLUS 1015_0340_0720 LPV FP Spare Parts Exploded Rev 01
EMEC AMSPLUS-AMSAPLUS-AMSCOPLUS Data Sheet R1-07-15
EMEC AMSPLUS-AMSAPLUS-AMSCOPLUS incl LPV Instruction Manual R1-11-13
EMEC AMSPLUS_AMSCOPLUS 0260 LPV FP Spare Parts Exploded Rev 01
EMEC Chemical Compatibility Table April 2013
| Name |
|---|
|
EMEC AMSCOPLUS_AMSPLUS 1015_0340_0720 LPV FP Spare Parts Exploded Rev 01
|
|
EMEC AMSPLUS-AMSAPLUS-AMSCOPLUS Data Sheet R1-07-15
|
|
EMEC AMSPLUS-AMSAPLUS-AMSCOPLUS incl LPV Instruction Manual R1-11-13
|
|
EMEC AMSPLUS_AMSCOPLUS 0260 LPV FP Spare Parts Exploded Rev 01
|
|
EMEC Chemical Compatibility Table April 2013
|
Additional information
| Configuration | Foot Mount, Wall Mount with Optional Bracket |
|---|---|
| Max Flow / Pressure (Head) | 15 l/hr @ 10 bar, 60 l/hr @ 2 bar |
| Process Connection | 3/4 inch BSP Male |
| Materials | FKM B Viton O-rings, PMMA Acrylic Transparent Head, PP Valve Bodies, PTFE Diaghragm/s, PTFE Teflon Seats, SS Balls |
| Max Viscosity | 8000 cps in LPV Models |
| IP Rating | IP65 |
| Install Kit Included | 16×22 suction hose, 8x12mm delivery tube & injection valve in LPV models |
Models / Part Numbers
- EMEC AMSCOPLUS 10 15 LPV FP for max 15 l/hr @ 10 bar
- EMEC AMSCOPLUS 07 20 LPV FP for max 20 l/hr @ 7 bar
- EMEC AMSCOPLUS 03 40 LPV FP for max 40 l/hr @ 3 bar
- EMEC AMSCOPLUS 02 60 LPV FP for max 60 l/hr @ 2 bar
