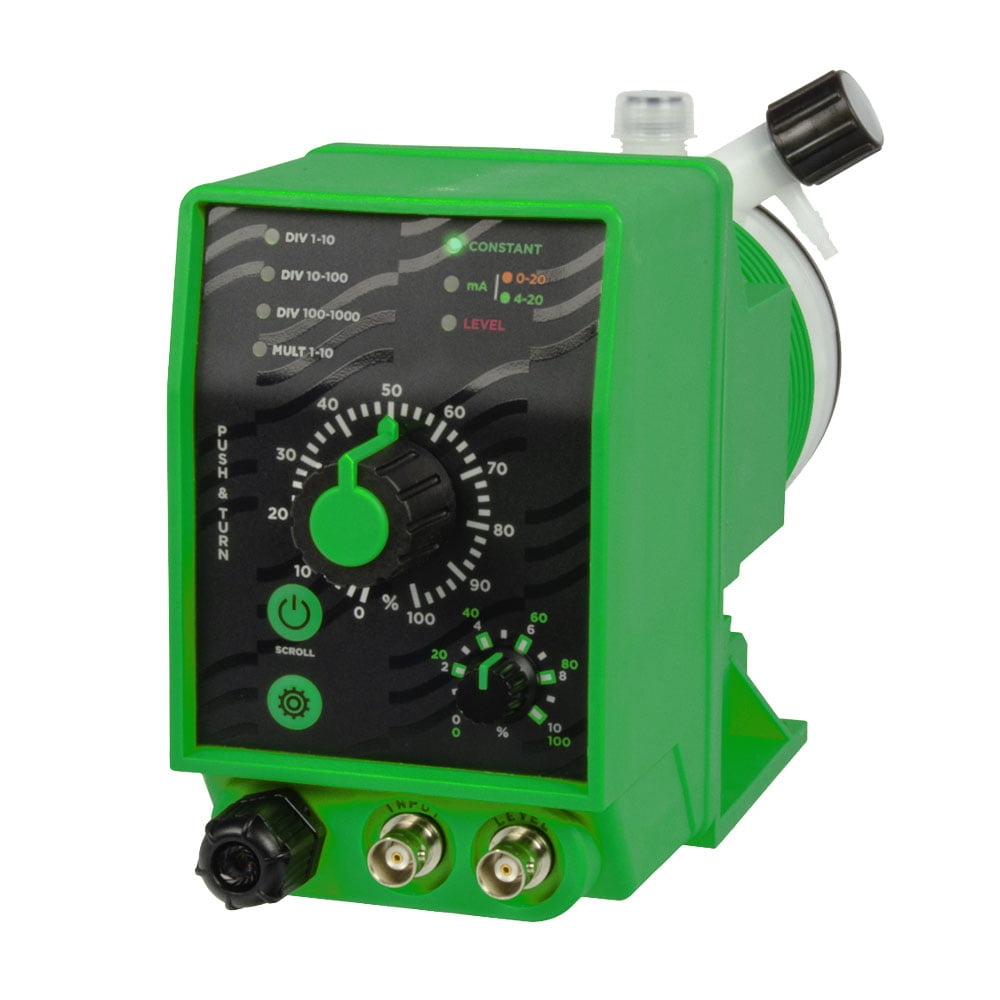

EMEC KAPLUS Constant/Pulse/mA Mode Chlorine Pumps (1 l/hr to 7.5 l/hr)
- Includes Installation Kit, i.e. foot valve, injection valve, 2m of Suction tube and 2m of Delivery tube
- Selectable Modes: Constant, Pulse with Multiply/Divide, mA
- Degassing (self-venting) PVDF or PMMA head
- Adjustable stroke length (10-100%)
- Float on foot valve stops pump dosing when chemical level in tank is low
- Double ball check valves in foot valve, suction & deliver valves
- Long lasting Solid Teflon diaphragm
- Reliable & accurate dosing
- Wall Mount with optional Front or Side Mount Bracket
- TIP: see available Models / Part Numbers below
Description
EMEC Chemical Compatibility Table April 2013
EMEC KAPLUS_KAMF 1035_1801_0855_0575 PMMA CLO2 Spare Parts Exploded Rev 01
EMEC KAPLUS_KAMF 1503 FP Spare Parts Exploded Rev 01
EMEC KPLUS-KAPLUS-KCOPLUS Data Sheet R1-17-15
EMEC KPLUS-KAPLUS-KCOPLUS incl LPV Instruction Manual R2-07-21
| Name |
|---|
|
|
|
EMEC Chemical Compatibility Table April 2013
|
|
EMEC KAPLUS_KAMF 1035_1801_0855_0575 PMMA CLO2 Spare Parts Exploded Rev 01
|
|
EMEC KAPLUS_KAMF 1503 FP Spare Parts Exploded Rev 01
|
|
EMEC KPLUS-KAPLUS-KCOPLUS Data Sheet R1-17-15
|
|
EMEC KPLUS-KAPLUS-KCOPLUS incl LPV Instruction Manual R2-07-21
|
Additional information
| Configuration | Foot Mount, Wall Mount with Optional Bracket |
|---|---|
| Variables Measured | Level |
| Inputs | 4-20mA, Pulse, Tank Level Dry Contact, Water Meter Make-up Pulses |
| Process Connection | 1/2 inch BSP Male |
| Max Viscosity | 100 cps |
| IP Rating | IP65 |
| Install Kit Included | 4x6mm tube (<12 l/hr) or 6x8mm tube (12 l/hr or more), injection valve & foot valve |
| Optional Tube Size | 1/2 inch, 3/8 inch, 5×8 or 6x9mm |
Models / Part Numbers
- EMEC KAPLUS 18 01 PMMA for max 1 l/hr @ 18 bar (PMMA degassing head)
- EMEC KAPLUS 15 03 FP for max 3 l/hr @ 15 bar (PVDF degassing head)
- EMEC KAPLUS 10 3.5 PMMA for max 3.5 l/hr @ 10 bar (PMMA degassing head)
- EMEC KAPLUS 05 7.5 PMMA for max 7.5 l/hr @ 5 bar (PMMA degassing head)
