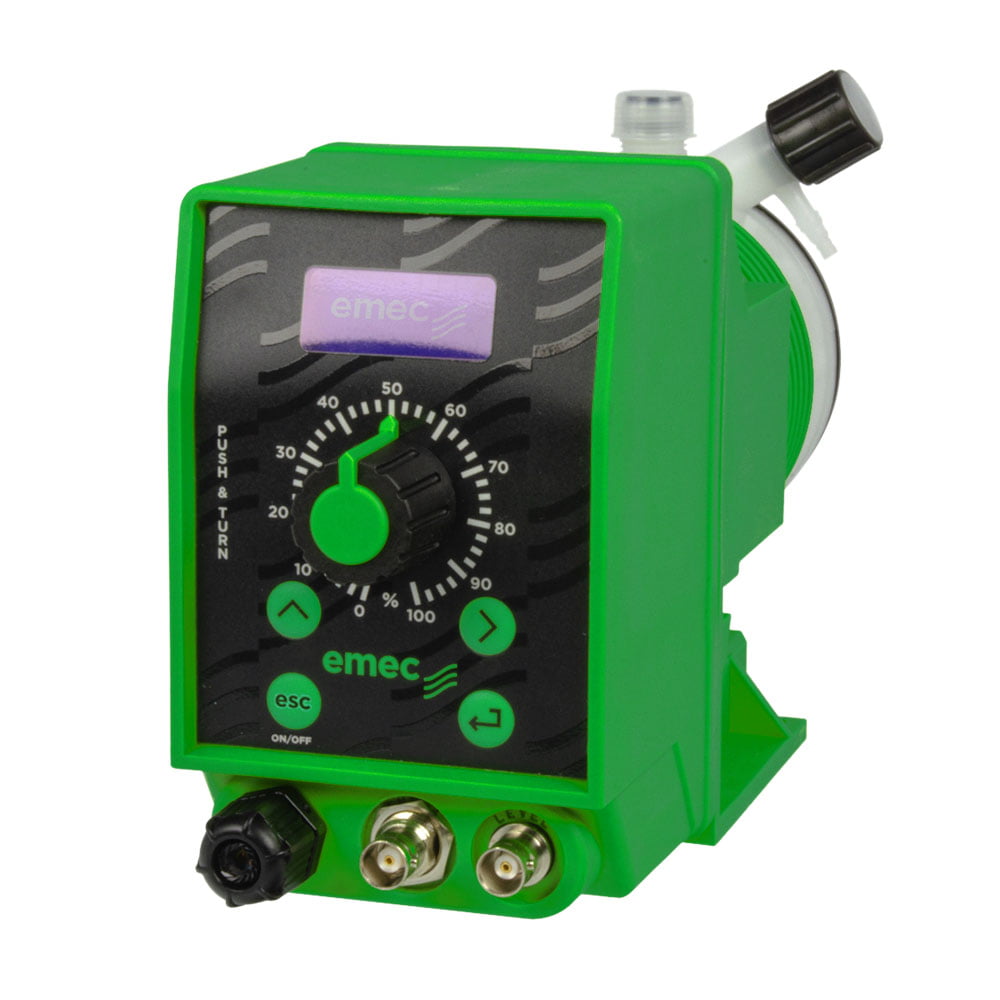

EMEC KMF Digital Pump - Constant/Proportional with Multifunction
PVDF Head for EMEC K Series or Prisma Pump
PP Head for EMEC K Series or Prisma Pump

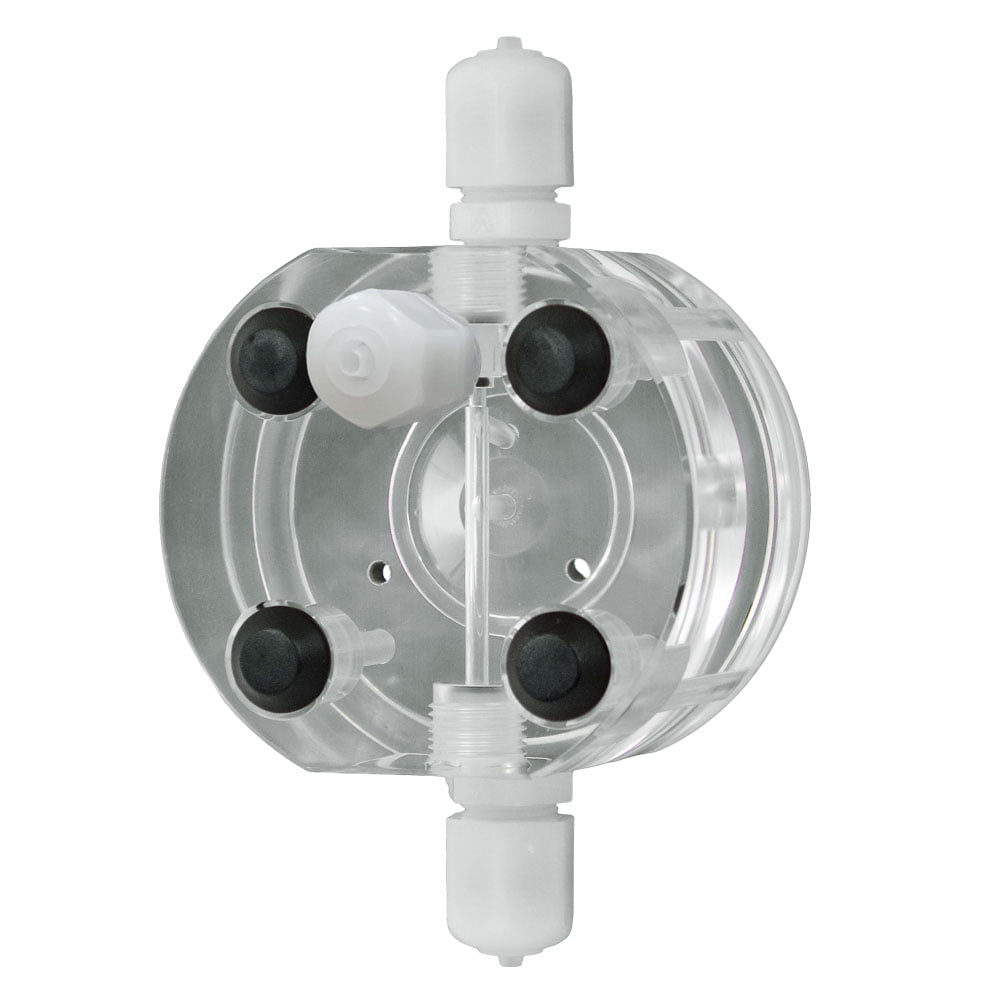

PMMA Head for EMEC KA Series Pumps
LPV Head for EMEC K Series or Prisma Pump

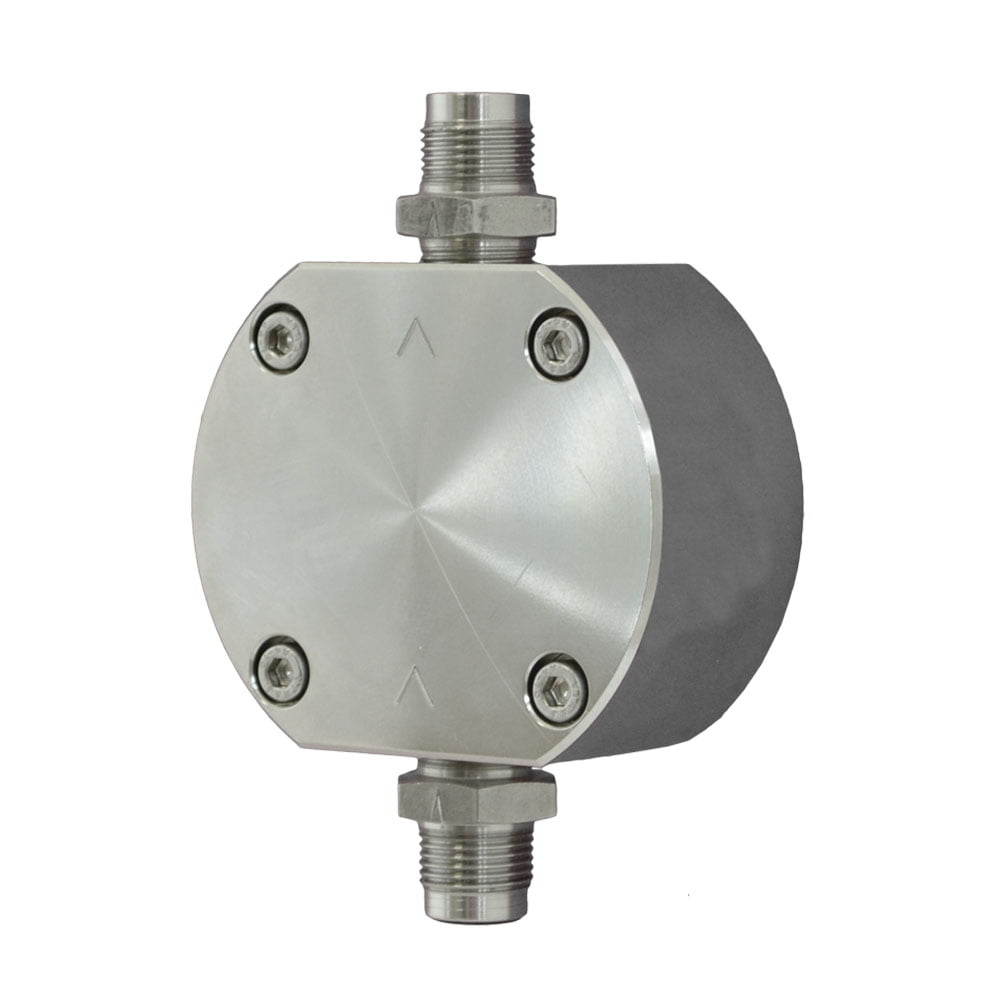

SS Head for EMEC K Series Pump
EMEC KMF & KAMF Digital Multi Function Pumps (1 l/hr to 18 l/hr)
- Includes Installation Kit, i.e. foot valve, injection valve, 2m of Suction tube and 2m of Delivery tube
- Programmable Modes: Constant, Pulse with Multiply/Divide, PPM, Percentage, Batch, Volt, mA
- Standard head: PVDF with Viton Seals
- Head for Caustic: PP with EPDM seals and SS Balls
- Degassing (self-venting) head for Chlorine: KAMF models only
- High Viscosity heads for Polymer: KMF LPV models only (8000 cps max.)
- Adjustable stroke length (10-100%)
- Backlit LCD Display of Strokes/Min, L/HR, PPM, etc
- Optional SEFL Flow Switch alarms if pump loses prime
- Programmable alarm relay output
- Pump enable/standby input
- Float on foot valve stops pump dosing when chemical level in tank is low
- Double ball check valves in foot valve, suction & deliver valves
- Long lasting Solid Teflon diaphragm
- Reliable & accurate dosing
- Wall Mount with optional Front or Side Mount Bracket
- Alternate code: EMEC KMSMF or EMEC KMSAMF
- TIP: see available Models / Part Numbers below
SKU: EMEC KMF / EMEC KAMF
Category: Adjustable Stroke Length Solenoid Pumps
Tag: emec pumps
Brand: emec
Description
EMEC Chemical Compatibility Table April 2013
EMEC KAPLUS_KAMF 1035_1801_0855_0575 PMMA CLO2 Spare Parts Exploded Rev 02
EMEC KAPLUS_KAMF 1503 FP Spare Parts Exploded Rev 01
EMEC KCOPLUS_KPLUS_KMF 1802_1005_0510_0218 LPV FP PMMA Spare Parts Exploded Rev 02
EMEC KMF-KAMF Data Sheet R1-11-15
EMEC KMF-KAMF Instruction Manual R1-01-17
EMEC KPLUS_KMF 02 18 FP Spare Parts Exploded Rev 01
EMEC KPLUS_KMF 02 18 PP EP SS Spare Parts Exploded Rev 01
EMEC KPLUS_KMF 1802_1005_0510 EP Spare Parts Exploded Rev 01
EMEC KPLUS_KMF 1802_1005_0510 FP Spare Parts Exploded Rev 01
EMEC KPLUS_KMF 1802_1005_0510 PP EP SS Spare Parts Exploded Rev 01
Quick_guide_KCO_KCL_PLUS
Quick_guide_KMS_MF
| Name |
|---|
|
|
|
EMEC Chemical Compatibility Table April 2013
|
|
EMEC KAPLUS_KAMF 1035_1801_0855_0575 PMMA CLO2 Spare Parts Exploded Rev 02
|
|
EMEC KAPLUS_KAMF 1503 FP Spare Parts Exploded Rev 01
|
|
EMEC KCOPLUS_KPLUS_KMF 1802_1005_0510_0218 LPV FP PMMA Spare Parts Exploded Rev 02
|
|
EMEC KMF-KAMF Data Sheet R1-11-15
|
|
EMEC KMF-KAMF Instruction Manual R1-01-17
|
|
EMEC KPLUS_KMF 02 18 FP Spare Parts Exploded Rev 01
|
|
EMEC KPLUS_KMF 02 18 PP EP SS Spare Parts Exploded Rev 01
|
|
EMEC KPLUS_KMF 1802_1005_0510 EP Spare Parts Exploded Rev 01
|
|
EMEC KPLUS_KMF 1802_1005_0510 FP Spare Parts Exploded Rev 01
|
|
EMEC KPLUS_KMF 1802_1005_0510 PP EP SS Spare Parts Exploded Rev 01
|
|
Quick_guide_KCO_KCL_PLUS
|
|
Quick_guide_KMS_MF
|
Additional information
| Configuration | Foot Mount, Wall Mount with Optional Bracket |
|---|---|
| Variables Measured | Level |
| Inputs | 4-20mA, Pulse, SEFL Flow Sensor, Standby Dry Contact, Tank Level Dry Contact, Water Meter Make-up Pulses |
| Outputs | Alarm Relay |
| Max Flow / Pressure (Head) | 1 l/hr @ 20 bar, 10 l/hr @ 5 bar, 18 l/hr @ 2 bar, 2 l/hr @ 18 bar, 5 l/hr @ 10 bar |
| Process Connection | 1/2 inch BSP Male |
| Materials | Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls |
| Max Viscosity | 100 cps, 600 cps with optional SS balls, 8000 cps in LPV Models |
| IP Rating | IP65 |
| Install Kit Included | 4x6mm tube (<12 l/hr) or 6x8mm tube (12 l/hr or more), injection valve & foot valve with level float |
| Optional Tube Size | 1/4 inch, 3/8 inch, 5×8 or 6x9mm |
Models / Part Numbers
- EMEC KMF 20 01 for max 1 l/hr @ 20 bar
- EMEC KMF 18 02 for max 2 l/hr @ 18 bar
- EMEC KMF 10 05 for max 5 l/hr @ 10 bar
- EMEC KMF 05 10 for max 10 l/hr @ 5 bar
- Add FP to Product Code above for PVDF head, Viton seals & CE Balls
- Add PP EP SS to Product Code above for PP head, EPDM seals & SS Balls
- Add LPV FP PMMA to Product above for high viscosity head
Chlorine Pumps
- EMEC KAMF 10 3.5 PMMA for max 3.5 l/hr @ 10 bar (PMMA degassing head)
- EMEC KAMF 08 5.5 PMMA for max 5.5 l/hr @ 8 bar (PMMA degassing head)
- EMEC KAMF 05 7.5 PMMA for max 7.5 l/hr @ 5 bar (PMMA degassing head)
