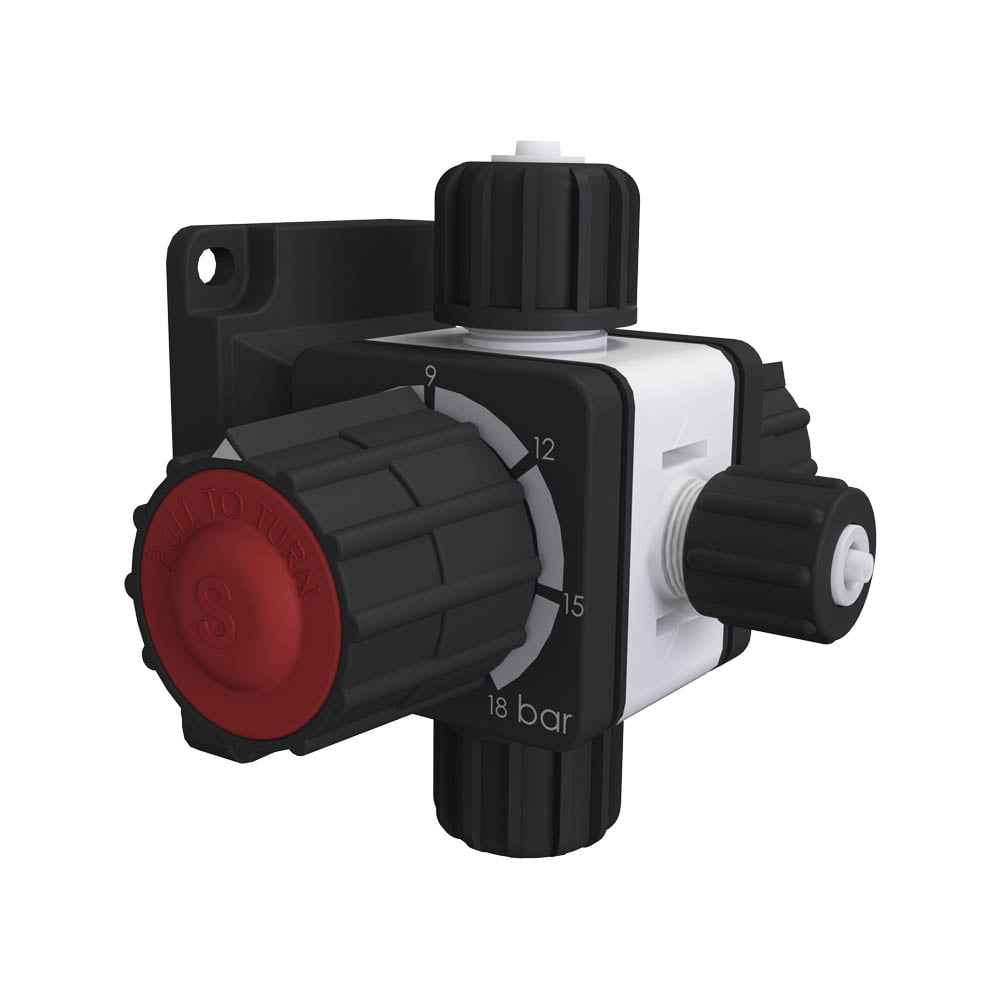

EMEC MFKTS Multi-Function (Anti-Syphon) Valve - Wall Mount 1
EMEC MFKTS Multi-function (Anti Syphon) valve – Wall Mount
- WALL MOUNT (REQUIRES TUBING CONNECTION FROM PUMP DELIVERY VALVE TO MULTI-FUNCTION VALVE)
- PVDF Body
- 0-5 Bar Adjustable back pressure for valve operation (ie. Pump should supply this pressure before the valve will operate)
- Prevents siphoning when pumping into low or negative pressure.
- 0-18 Bar Adjustable discharge control pressure
- 3/8 inch and 1/2 inch Connections included for 4×6 tubing
- Add /V to Product Code for FKM B Viton seals
- Add /D to Product Code for EPDM seals
Description
EMEC MFKT Data Sheet R1-01-13
EMEC MFKT Instruction Manual R2-10-09
| Name |
|---|
|
EMEC MFKT Data Sheet R1-01-13
|
|
EMEC MFKT Instruction Manual R2-10-09
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Materials | EPDM O-rings, FKM B Viton O-rings, PVDF Body |
| IP Rating | IP65 |
