EMEC PDMF 005 240 Motor Driven dosing pump (240l/hr @ 5bar) 1

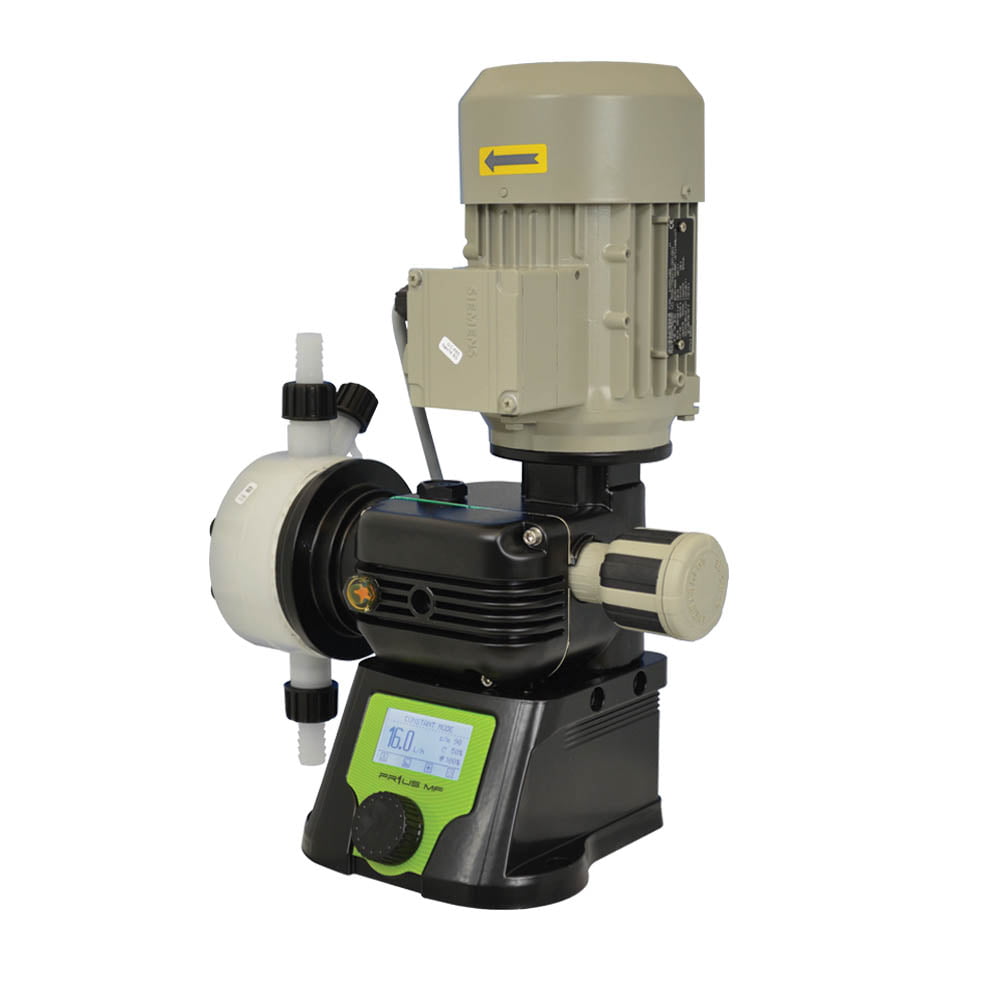

EMEC PRIUS PDMF 005 240 Motor Driven dosing pump (240l/hr @ 5bar)

  • Working modes: Constant, ppm, %, mlq, pause-work, weekly timer, 4-20mA, pulse, Volt and Batch
  • Output alarms and Standby input
  • 240 l/hr @ 5 bar
  • PVDF head
  • Ceramic balls
  • 175 spm (50Hz)
  • 240VAC Power Supply
  • 3/4 inch connections for 18x22mm hose
  • Hose/Tube connections via Hose barb and hose clamp
  • Solvent weld PVC suction/delivery fittings optional
Compare
Request Quote
SKU: EMEC PDMF 005 240 Category: Tag: Brand:

Description

EMEC PD 005 240 KV19_KV12_PDMF KV12 Spare Parts Exploded Rev 01
EMEC PD 005 240 PD19 SS_PD12 SS_PDMF PD12 SS Spare Parts Exploded Rev 01
EMEC PRIUS PDMF Data Sheet R11-19 2022
EMEC PRIUS PDMF Instruction Manual R1-09-17
EMEC PRIUS Pumps Catalogue
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
EMEC PD 005 240 KV19_KV12_PDMF KV12 Spare Parts Exploded Rev 01
EMEC PD 005 240 PD19 SS_PD12 SS_PDMF PD12 SS Spare Parts Exploded Rev 01
EMEC PRIUS PDMF Data Sheet R11-19 2022
EMEC PRIUS PDMF Instruction Manual R1-09-17
EMEC PRIUS Pumps Catalogue
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
Name
EMEC PD 005 240 KV19_KV12_PDMF KV12 Spare Parts Exploded Rev 01
EMEC PD 005 240 PD19 SS_PD12 SS_PDMF PD12 SS Spare Parts Exploded Rev 01
EMEC PRIUS PDMF Data Sheet R11-19 2022
EMEC PRIUS PDMF Instruction Manual R1-09-17
EMEC PRIUS Pumps Catalogue
EMEC Pump Delivery Curves PRIUS D rev R2-11-21

Additional information

Configuration

Foot Mount
Inputs

4-20mA, Pulse, Standby Dry Contact, Tank Level Dry Contact, Water Meter Make-up Pulses
Process Connection

3/4 inch BSP Male
Materials

Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies
IP Rating

IP55
Install Kit Included

18x22mm hose
Optional Tube Size

Solvent weld fittings for 1/2 inch BS pipe

Models / Part Numbers

  • Add FP to Product Code for Viton seals
  • Add EP to Product Code for EPDM seals
