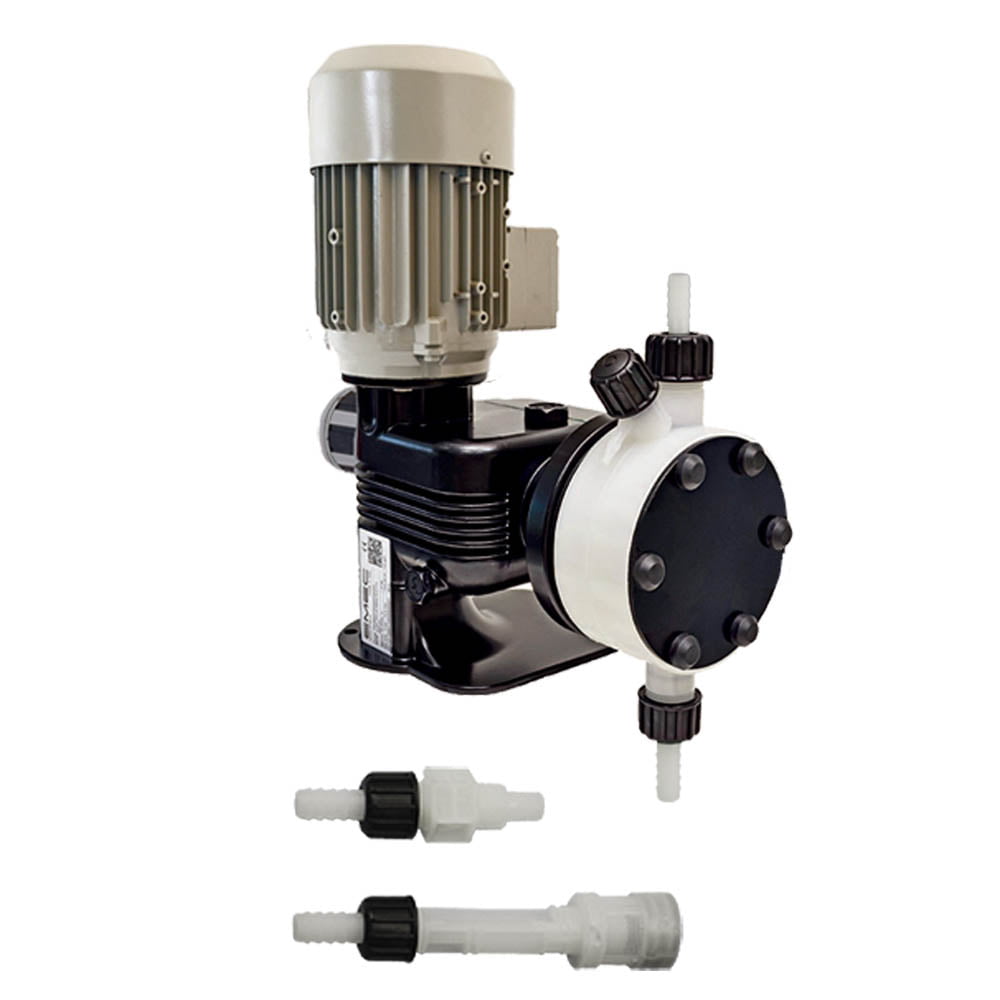

EMEC PD 010 060 Motor Driven dosing pump (60l/hr @ 10bar) 1
EMEC PRIUS PD 010 060 Motor Driven dosing pump (60l/hr @ 10bar)
- 60 l/hr @ 10 bar
- PVDF head
- Ceramic balls
- 175 spm (50Hz)
- 415VAC 0.18kW 3Ph Motor (240VAC 1Ph motor available on request)
- 1/2 inch connections for 13x16mm hose
- Hose/Tube connections via Hose barb and hose clamp
- Includes installation kit – Foot valve, tubing and 1/2 inch Injection valve
- Solvent weld PVC suction/delivery fittings optional
Description
EMEC PD 010 060 KV19_KV11_ PDMF KV12 Spare Parts Exploded Rev 01
EMEC PD 010 060 PD19 SS_PD11 SS_ PDMF PD12 SS Spare Parts Exploded Rev 01
EMEC PD Data Sheet R1-04-16
EMEC PRIUS PD Instruction Manual R1-07-17
EMEC PRIUS Pumps Catalogue
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
| Name |
|---|
|
EMEC PD 010 060 KV19_KV11_ PDMF KV12 Spare Parts Exploded Rev 01
|
|
EMEC PD 010 060 PD19 SS_PD11 SS_ PDMF PD12 SS Spare Parts Exploded Rev 01
|
|
EMEC PD Data Sheet R1-04-16
|
|
EMEC PRIUS PD Instruction Manual R1-07-17
|
|
EMEC PRIUS Pumps Catalogue
|
|
EMEC Pump Delivery Curves PRIUS D rev R2-11-21
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Process Connection | 1/2 inch BSP Male |
| Materials | Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies |
| IP Rating | IP55 |
| Install Kit Included | 18x12mm suction hose, 13x16mm delivery hose, injection valve & foot valve |
| Optional Tube Size | Solvent weld fittings for 1/2 inch BS pipe |
Models / Part Numbers
- Add FP to Product Code for Viton seals
- Add EP to Product Code for EPDM seals
