Mag Drive Pumps - Argal TMB Light Duty 1
Mag Drive Pumps – Argal TMB Light Duty

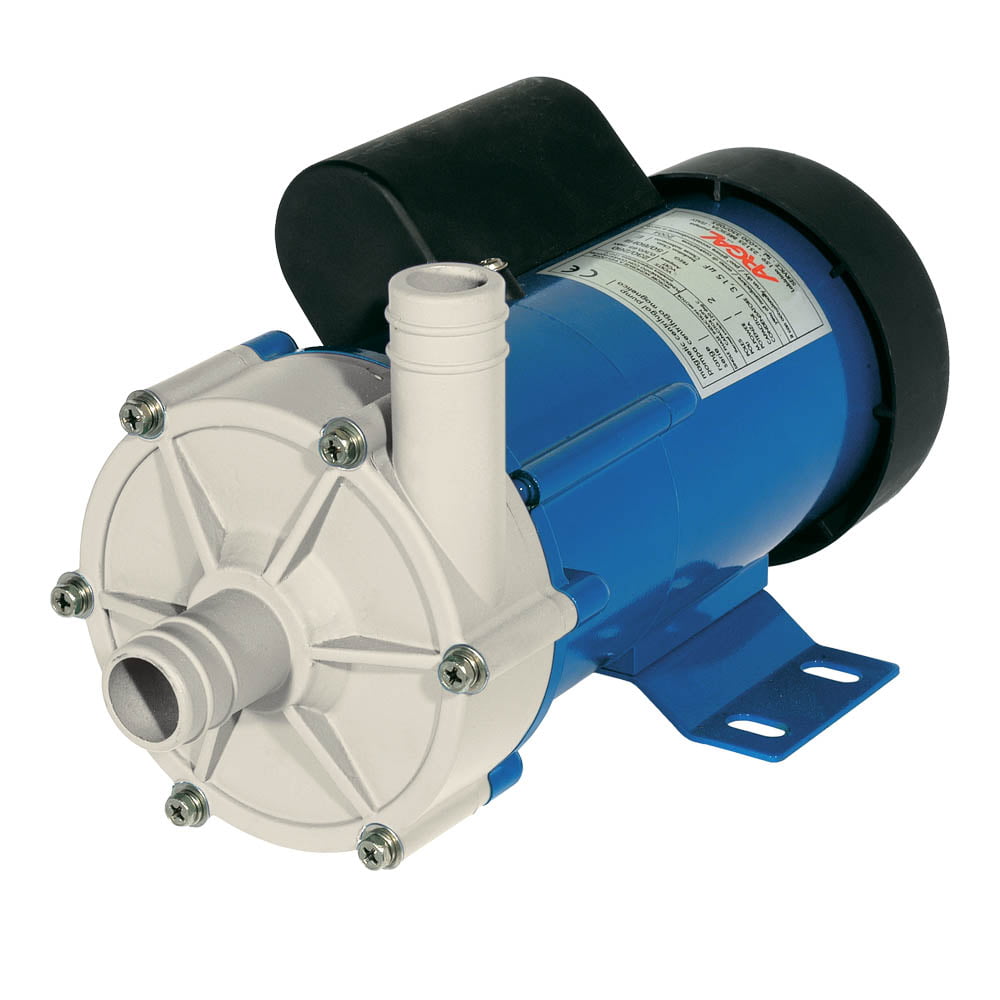

The Argal TMB magnetic drive pump is a reliable and efficient solution for light-duty chemical transfer applications. Its innovative mag drive technology ensures safe, leak-free operation, making it ideal for handling a variety of chemical substances.
Features:
- Flow Range: 10-70 L/min for flexible performance.
- Motor: 240VAC single-phase, 2-pole splashproof design for durability.
- Connections: BSP threaded on all models (TMB10 features a hosetail connection).
- Temperature Range: Operates within 0-60°C for versatile use.
- Chemical Compatibility: Handles up to 30% acid or alkaline solutions with a standard PP liquid end.
- Optional Liquid End: CTFE for enhanced chemical resistance (available on TMB35).
- Seal Options: Viton or EPDM O-rings for optimal sealing.
- Power Options: 120VAC/60Hz UL-approved motors on request (excluding TMB10).
- TMB10 Model: Available in 12VDC with a durable Noryl head.
Choose Argal TMB mag drive pumps for their robust construction, energy efficiency, and exceptional chemical handling capabilities.
Description
ARG TMB Instruction Manual Rev-4
ARGAL Mag Drive Chemical Compatibility Chart
ARGAL TMB Data Sheet
| Name |
|---|
|
ARG TMB Instruction Manual Rev-4
|
|
ARGAL Mag Drive Chemical Compatibility Chart
|
|
ARGAL TMB Data Sheet
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Max Flow / Pressure (Head) | 10 l/min @ 1m head, 10 l/min @ 4m head, 20 l/min @ 1m head, 30 l/min @ 1.5m head, 60 l/min @ 1m head |
| Materials | EPDM O-rings, FPM Viton O-rings, GFR-PP Body |
| IP Rating | IP54 |
