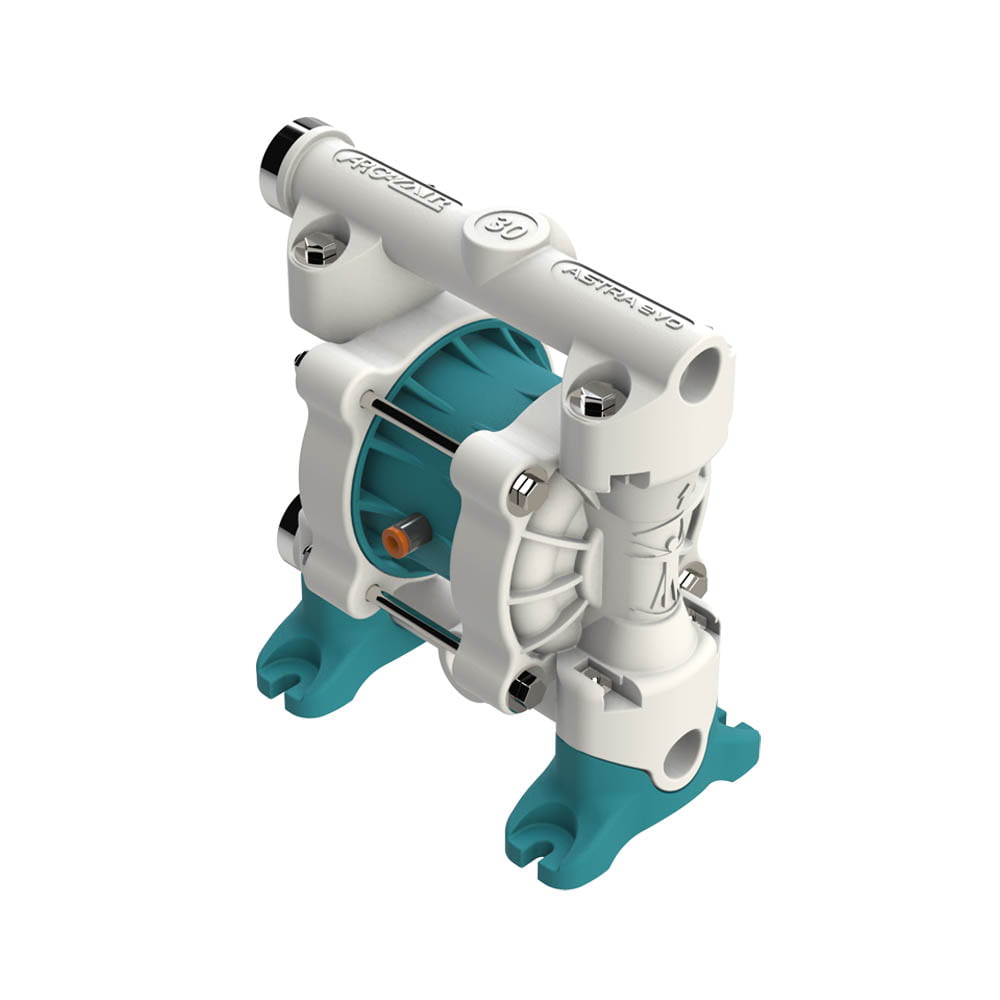

ARG DDE 030

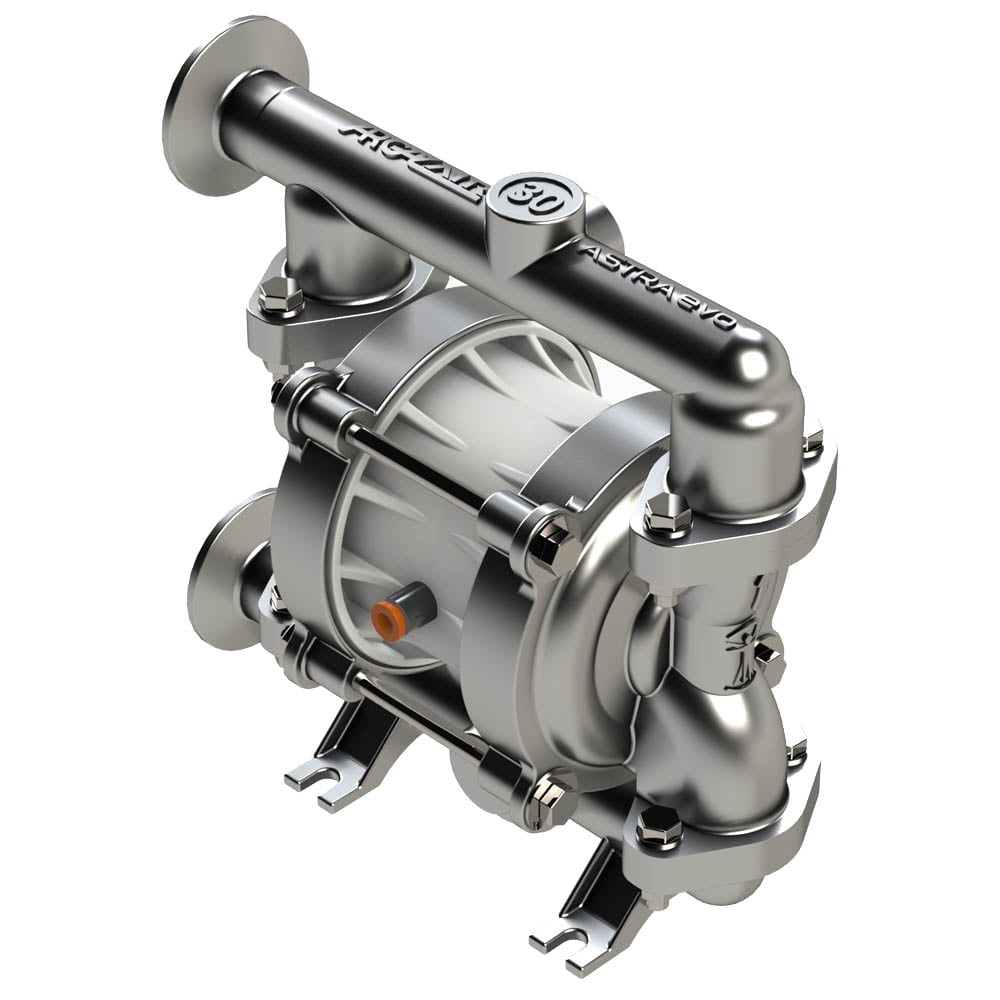

ARG DDE 030 SPN (AISI 316L E.L.)

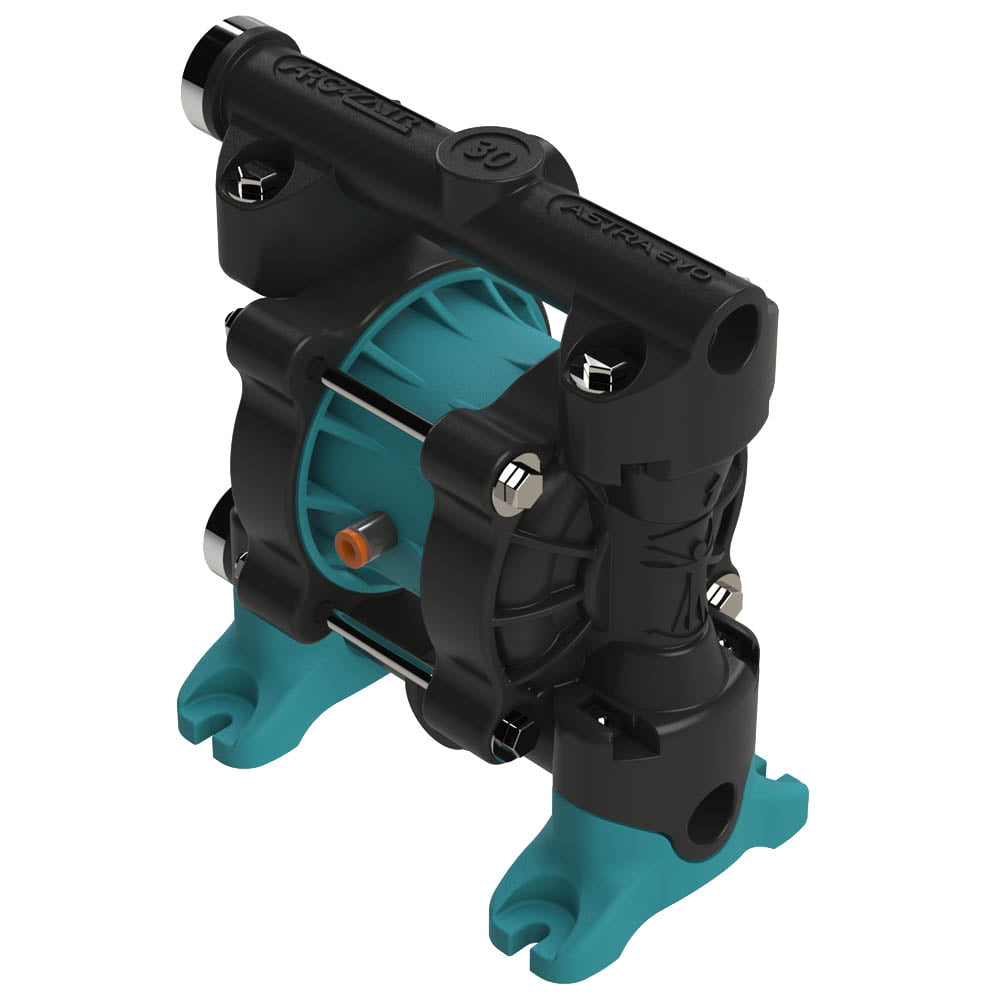

ARG DDE 030 FC (PVDF+CF)

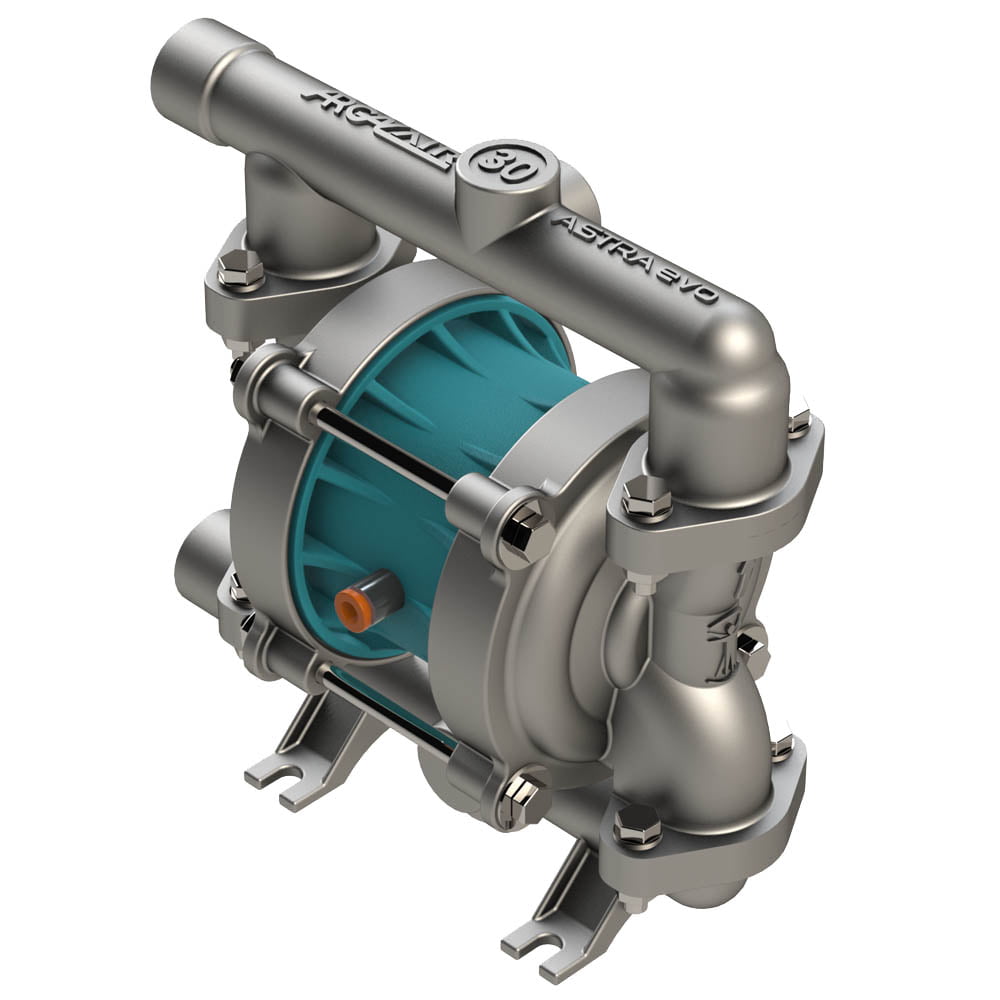

ARG DDE 030 SS (AISI 316L)

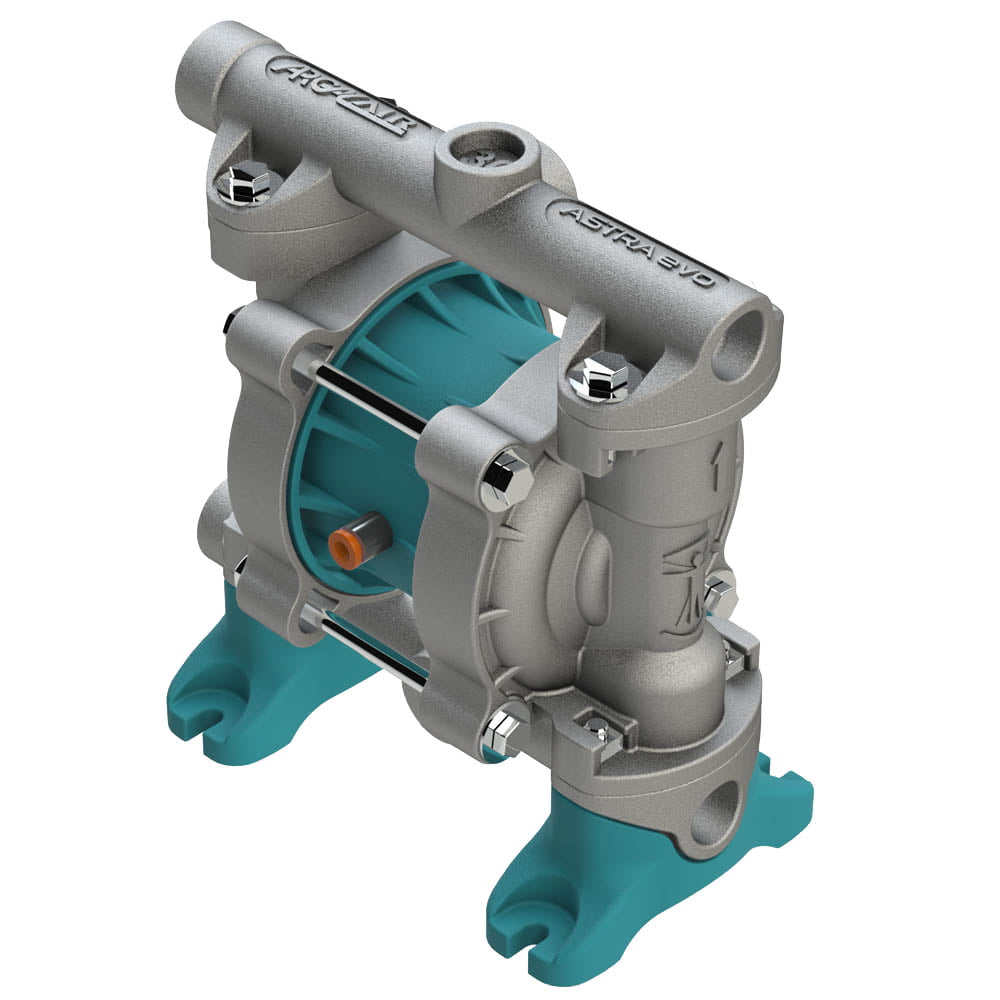

ARG DDE 030 ALU (AL)

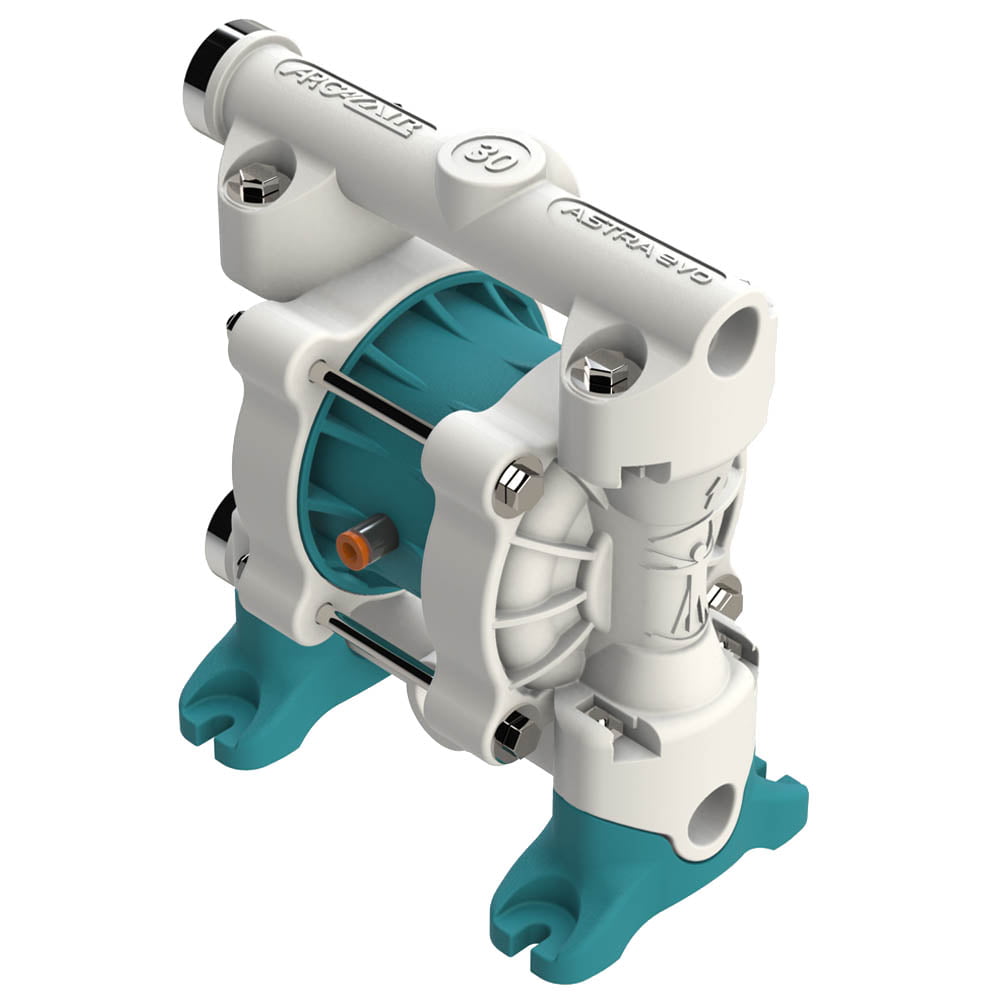

ARG DDE 030 WR (PP+GFR)
Argal DDE 030 AODD Pumps -1/2 inch 52 L/min max
The Argal DDE 030 AODD pump is a compact and efficient solution for various industrial and chemical transfer applications. Designed for durability and versatility, this ArgalAir pump is perfect for self-priming, flooded, or submerged installations.
Features:
- Flow Rate: 1/2 inch, up to 52 L/min for precise performance.
Reliable Design: Unstallable operation with a maximum head of 80m. - Material Options: Wetted constructions available in Polypropylene, PVDF, Stainless Steel (SS), and Aluminium for enhanced durability and chemical compatibility.
- Diaphragm Choices: Santoprene and PTFE diaphragms for flexible chemical resistance.
- Seal Options: EPDM or Viton O-rings to meet diverse operating requirements.
- FDA-Compliant Models: Electro-polished SS316 options (ASTRAevoFOOD DDE SPN) for food and pharmaceutical use.
- ATEX-Certified Versions: Safe for use in hazardous environments.
Whether you need a pump for industrial use, food-grade applications, or chemical transfer, the Argal DDE AODD pump offers reliable and efficient performance. Choose ArgalAir for innovative pumping solutions tailored to your needs.
Description
ARG-DDE-030-AL-5084-Data-Sheet-rev-1.0.pdf
ARG-DDE-030-SP-5086-Data-Sheet-rev-1.0.pdf
ARG-DDE-030-SS-5085-Data-Sheet-rev-1.0.pdf
ARG-DDE-030-WR-FC-5083-Data-Sheet-rev-1.0.pdf
ARGAL-AIR-AODD-pumps-summary-2023.pdf
ARGAL-AODD-ASTRA-EVO-DDE-Pumps-Brochure-2022.pdf.pdf
ARGAL-AODD-ASTRA-EVO-FOOD-DDE-SP-Pumps-Brochure-2019.pdf.pdf
ARGALAIR-Production-Program-2023.pdf
Argal-DDE-Pump-Identification-Codes-2022-Rev-14.pdf
EN-ASTRAevo-DDE-user-manual-rev18-2024-1.pdf
| Name |
|---|
|
|
|
ARG-DDE-030-AL-5084-Data-Sheet-rev-1.0.pdf
|
|
ARG-DDE-030-SP-5086-Data-Sheet-rev-1.0.pdf
|
|
ARG-DDE-030-SS-5085-Data-Sheet-rev-1.0.pdf
|
|
ARG-DDE-030-WR-FC-5083-Data-Sheet-rev-1.0.pdf
|
|
ARGAL-AIR-AODD-pumps-summary-2023.pdf
|
|
ARGAL-AODD-ASTRA-EVO-DDE-Pumps-Brochure-2022.pdf.pdf
|
|
ARGAL-AODD-ASTRA-EVO-FOOD-DDE-SP-Pumps-Brochure-2019.pdf.pdf
|
|
ARGALAIR-Production-Program-2023.pdf
|
|
Argal-DDE-Pump-Identification-Codes-2022-Rev-14.pdf
|
|
EN-ASTRAevo-DDE-user-manual-rev18-2024-1.pdf
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Max Flow / Pressure (Head) | Refer curves in Data Sheets |
| Port Size | 1/2 inch BSP Female |
| Materials | Refer to Data Sheets |
| Max Viscosity | Refer to curves in DDE Pumps Brochure |
